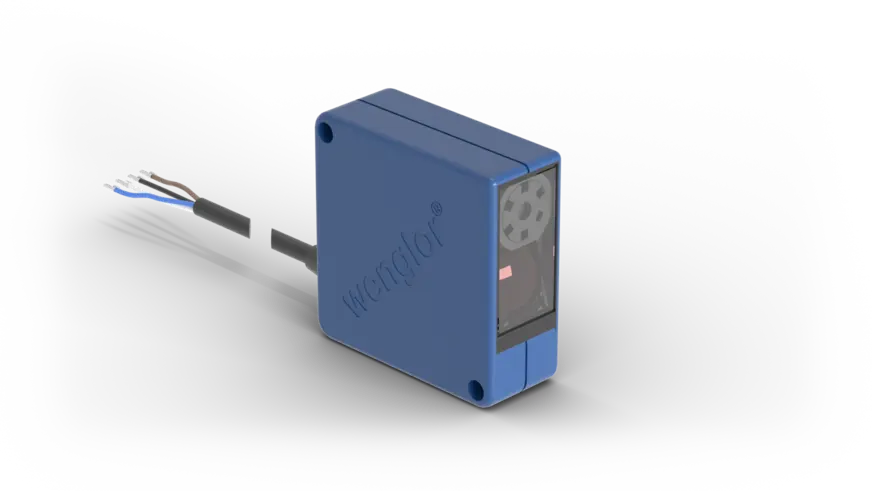

Wenglor YP05MGVL-P24 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$2,327.00
Part Number
  • YP05MGVL-P24
Highlights...

Features

  • Linearity: 0,5 %
  • Measuring range: 10 mm
  • Working Range: 43 to 53 mm
  • Measuring Distance: 48 mm
  • Measuring Range: 10 mm
  • Resolution: 4 µm

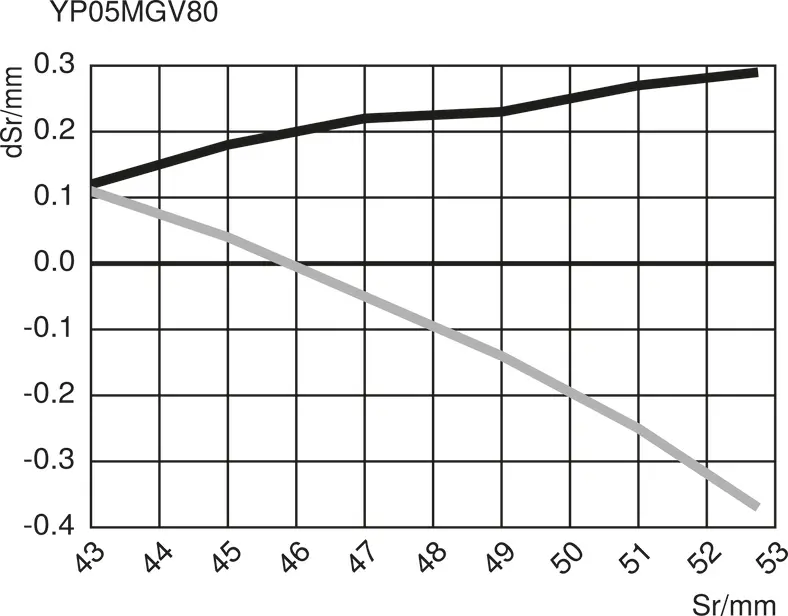

  • Linearity: 0.5 %
  • Linearity Deviation: 50 µm
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.5 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Cut-Off Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift: 5 µm/K
  • Temperature Range: 14°F to 140°F
  • Error Output Voltage Drop: < 2.5 V
  • PNP Error Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT
  • Optic Cover: Glass
  • Full Encapsulation: yes
  • Degree of Protection: IP67

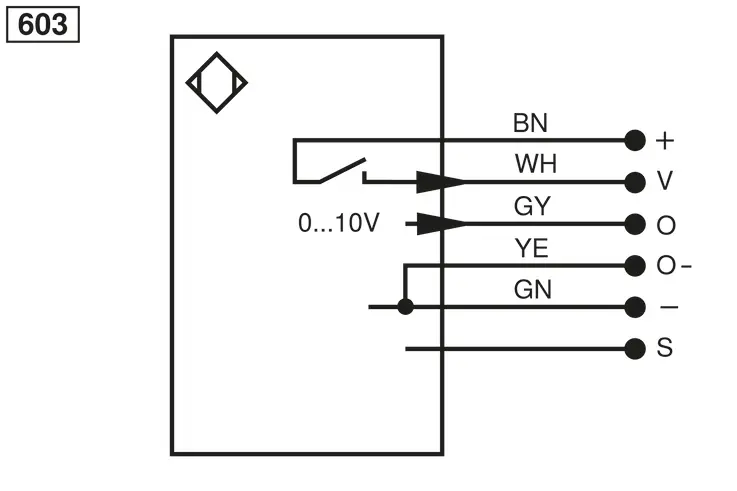

  • Connection: Cable; 6-wire
  • Cable length (L): 6 m
  • Wire cross-section: 0.25 mm²
  • Weight: 398 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • Complementary Products: Analog Evaluation Unit AW02, IO-Link converter
These sensors can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object's color.
