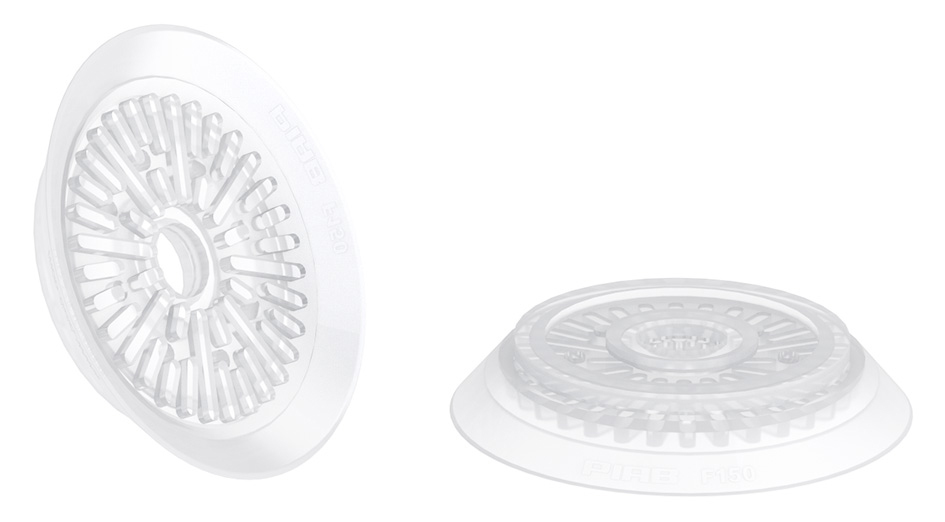

Piab F50-2.21.05AC / 9909670 Suction cup F50-2 Silicone FCM, 1/4" NPT male, with mesh filter

The material used is food grade silicone material. It is free from color pigments, approved by FDA (FDA 21 CFR 177.2600) and meets EU's regulation EU 1935/2004. (FDA approved). The cup is soft and pliable and can operate at a wide temperature range.

$33.00
Part Numbers
  • F50-2.21.05AC
  • 9909670
Highlights...

Features

  • The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
  • Suitable for flat objects.
  • Good stability and little inherent movement.
  • Recommended when the lifting force is parallel to the surface of the object.
  • Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel.
  • Material Temperature Max: 392 °F
  • Fitting Size: 1/4" mm.
  • Curve Radius (Min): 55 mm.
  • Movement Vertical (Max): 2.2 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 36 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 74 N Vertical to the Surface
90 -kPa 96 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 24 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 40 N Parallel to the Surface
90 -kPa 50 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Good
Oil Poor
Weather Ozone Excellent
Hydrolysis Fair
Petrol Poor
Concentrated Acids Poor
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Excellent
