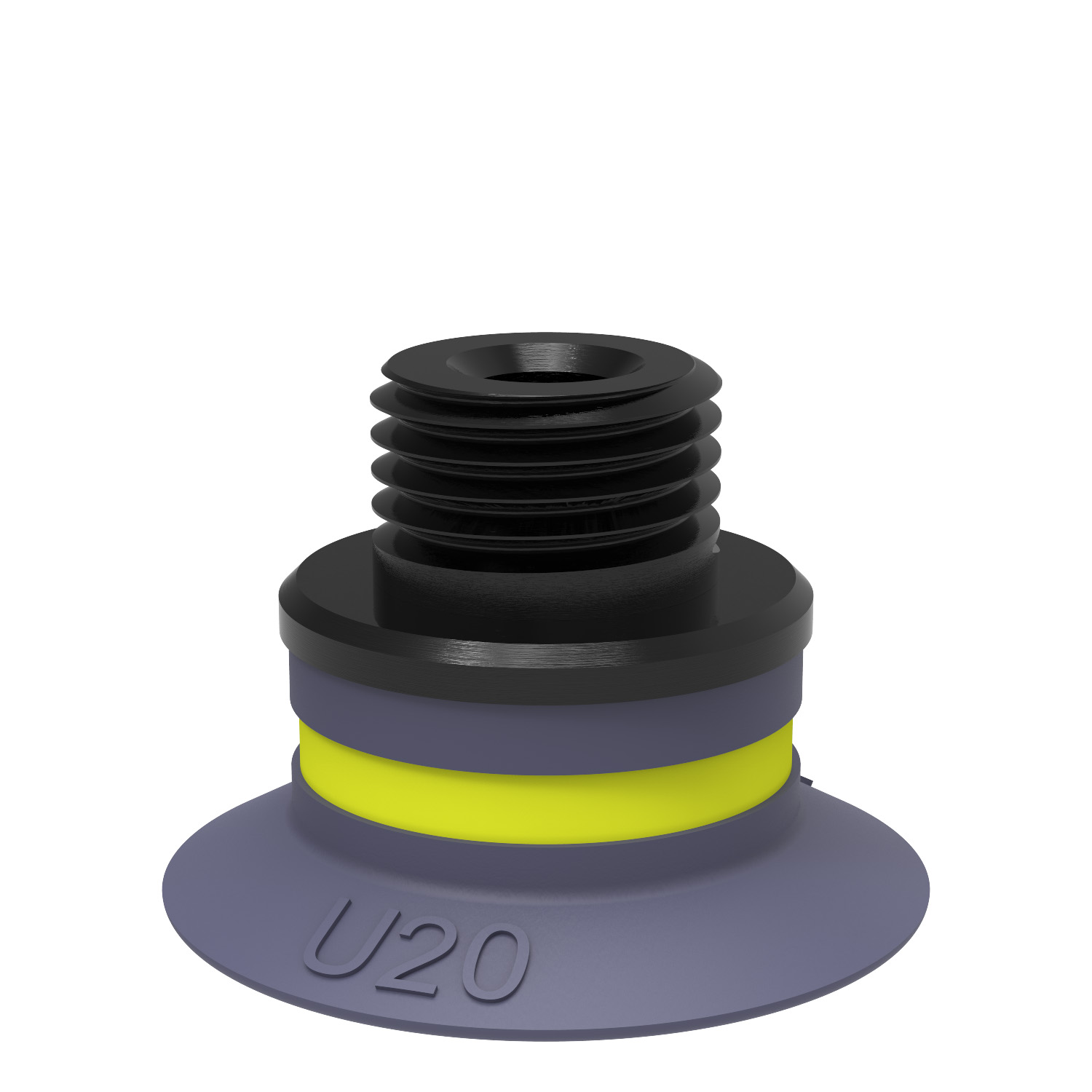

Piab U20.47.02AC / 9906873 Suction cup U20 HNBR, 1/8" NPT male, with mesh filter
Universal/flat suction cup in HNBR for handling objects with flat or slightly curved surfaces.
$13.30
Part Numbers
- U20.47.02AC
- 9906873
Highlights...
- U20.47.02AC
- By Piab
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
- Material Temperature Max: 284 °F
- Fitting Size: 1/8" mm.
- Curve Radius (Min): 13 mm.
- Movement Vertical (Max): 2.5 mm.
Description
Lifting Force Specifications
| Vacuum Level | Lifting Force | Direction |
|---|---|---|
| 20 -kPa | 5.9 N | Vertical to the Surface |
| 40 -kPa | 0 N | Vertical to the Surface |
| 50 -kPa | 0 N | Vertical to the Surface |
| 60 -kPa | 12 N | Vertical to the Surface |
| 90 -kPa | 16 N | Vertical to the Surface |
| 10 -kPa | 0 N | Parallel to the Surface |
| 20 -kPa | 5.9 N | Parallel to the Surface |
| 40 -kPa | 0 N | Parallel to the Surface |
| 60 -kPa | 8.8 N | Parallel to the Surface |
| 90 -kPa | 9.8 N | Parallel to the Surface |
Material Quality Specifications
| Material | Quality |
|---|---|
| Wear Resistance | Excellent |
| Oil | Excellent |
| Weather Ozone | Excellent |
| Hydrolysis | Good |
| Petrol | Excellent |
| Concentrated Acids | Fair |
| Alcohol | Good |
| Ethanol | Not applicable |
| Methanol | Not applicable |
| Oxidation | Excellent |
