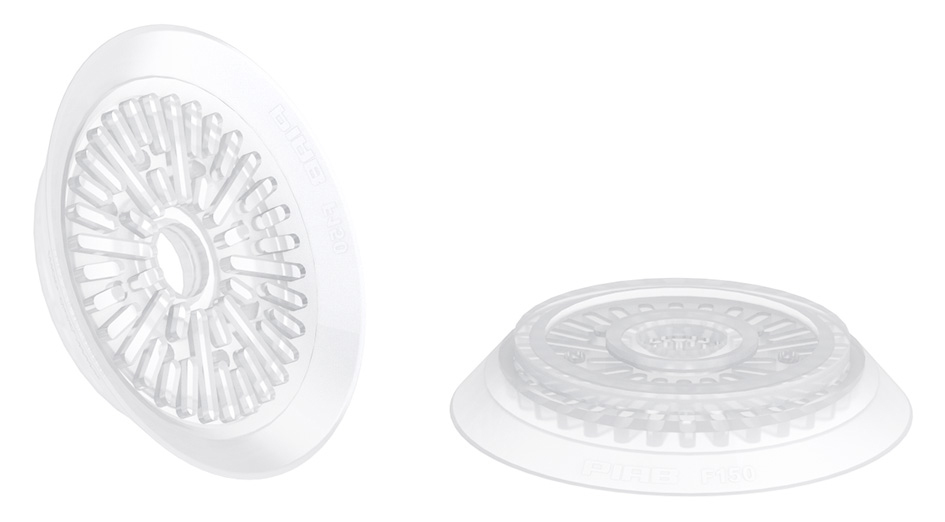

Piab F110.21.11NB / 0200503 Suction cup F110 Silicone FCM, 3/8" NPSF female, with mesh filter

The material used is food grade silicone material. It is free from color pigments, approved by FDA (FDA 21 CFR 177.2600) and meets EU's regulation EU 1935/2004. (FDA approved). The cup is soft and pliable and can operate at a wide temperature range.

$126.49
Part Numbers
  • F110.21.11NB
  • 0200503
Highlights...

Features

  • The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
  • Suitable for flat objects.
  • Good stability and little inherent movement.
  • Recommended when the lifting force is parallel to the surface of the object.
  • Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel.
  • Material Temperature Max: 392 °F
  • Fitting Size: 3/8" mm.
  • Curve Radius (Min): 250 mm.
  • Movement Vertical (Max): 4 mm.
View other configurations.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 140 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 420 N Vertical to the Surface
90 -kPa 560 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 140 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 250 N Parallel to the Surface
90 -kPa 300 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Good
Oil Poor
Weather Ozone Excellent
Hydrolysis Fair
Petrol Poor
Concentrated Acids Poor
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Excellent

General Accessories

Piab 11NC / 0100561 Fitting 110, G1/2" female, clamp ring with mesh filter
Piab 11NC / 0100561 Fitting 110, G1/2" female, clamp ring with mesh filter

A variety of fittings for suction cups.

$74.43

Spares

Piab 11NB / 0100559 Fitting 110, 3/8" NPSF female, with mesh filter
Piab 11NB / 0100559 Fitting 110, 3/8" NPSF female, with mesh filter

A variety of fittings for suction cups.

$74.43
Piab F110.21 / 0200302 Suction cup F110 Silicone FCM
Piab F110.21 / 0200302 Suction cup F110 Silicone FCM

The material used is food grade silicone material. It is free from colour pigments, approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004.(FDA approved). The cup is soft and pliable and can operate at a wide temperature range.

$47.07
