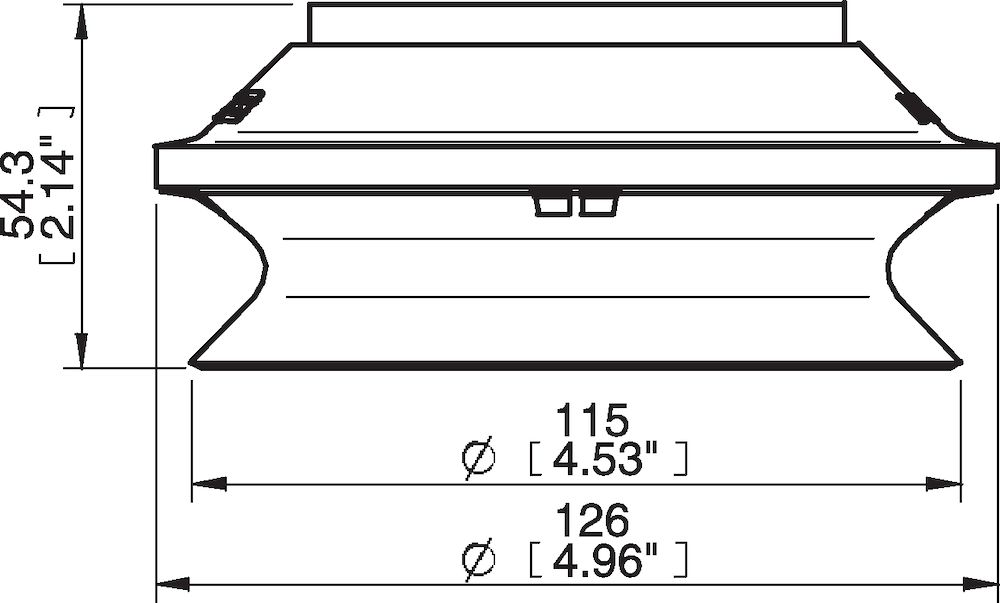

Piab 32.50.097P Suction cup B110-2 Nitrile-PVC

$51.85
Part Numbers
  • 32.50.097P
  • 3250097P
Highlights...

Features

  • Material: Nitrile-PVC (NPV)
  • Dimensions: 2.14 in. (length), 0.26 lb. (weight)
  • Fitting Size: None mm.
  • Curve Radius (Min): 60 mm.
  • Movement Vertical (Max): 34.6 mm.

This product is an accessory for the following products:

Piab 11NA / 0100557 Fitting 110 G3/8" female, clamp ring with mesh filter
Piab 11NA / 0100557 Fitting 110 G3/8" female, clamp ring with mesh filter

A variety of fittings for suction cups.

$74.43
Piab 11NB / 0100559 Fitting 110, 3/8" NPSF female, with mesh filter
Piab 11NB / 0100559 Fitting 110, 3/8" NPSF female, with mesh filter

A variety of fittings for suction cups.

$74.43
Piab 11NC / 0100561 Fitting 110, G1/2" female, clamp ring with mesh filter
Piab 11NC / 0100561 Fitting 110, G1/2" female, clamp ring with mesh filter

A variety of fittings for suction cups.

$74.43
Piab 11UA / 3250007 Fitting G1/2" female Al, with mesh filter
Piab 11UA / 3250007 Fitting G1/2" female Al, with mesh filter

$74.43
Piab B110-2.20.11NA / 0101896 Suction cup B110-2 Silicone, G3/8" female, clamp ring with mesh filter
Piab B110-2.20.11NA / 0101896 Suction cup B110-2 Silicone, G3/8" female, clamp ring with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$147.42
Piab B110-2.20.11NB / 0101897
Piab B110-2.20.11NB / 0101897

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$147.42
Piab B110-2.20.11NC / 0101898 Suction cup B110-2 Silicone, G1/2" female, clamp ring with mesh filter
Piab B110-2.20.11NC / 0101898 Suction cup B110-2 Silicone, G1/2" female, clamp ring with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$147.42
Piab B110-2.20.11UA / 3250049S Suction cup B110-2 Silicone, G1/2" female Al, with mesh filter
Piab B110-2.20.11UA / 3250049S Suction cup B110-2 Silicone, G1/2" female Al, with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$90.74
Piab B110-2.30.11NA / 0101902
Piab B110-2.30.11NA / 0101902

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$119.93
Piab B110-2.30.11NB / 0101903
Piab B110-2.30.11NB / 0101903

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$119.93
Piab B110-2.30.11NC / 0101904
Piab B110-2.30.11NC / 0101904

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$119.93
Piab B110-2.30.11UA / 3250049P Suction cup B110-2 Nitrile-PVC, G1/2" female Al, with mesh filter
Piab B110-2.30.11UA / 3250049P Suction cup B110-2 Nitrile-PVC, G1/2" female Al, with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$128.32

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 137 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 343 N Vertical to the Surface
90 -kPa 461 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 0 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 0 N Parallel to the Surface
90 -kPa 0 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Excellent
Oil Excellent
Weather Ozone Good
Hydrolysis Good
Petrol Excellent
Concentrated Acids Fair
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Good
