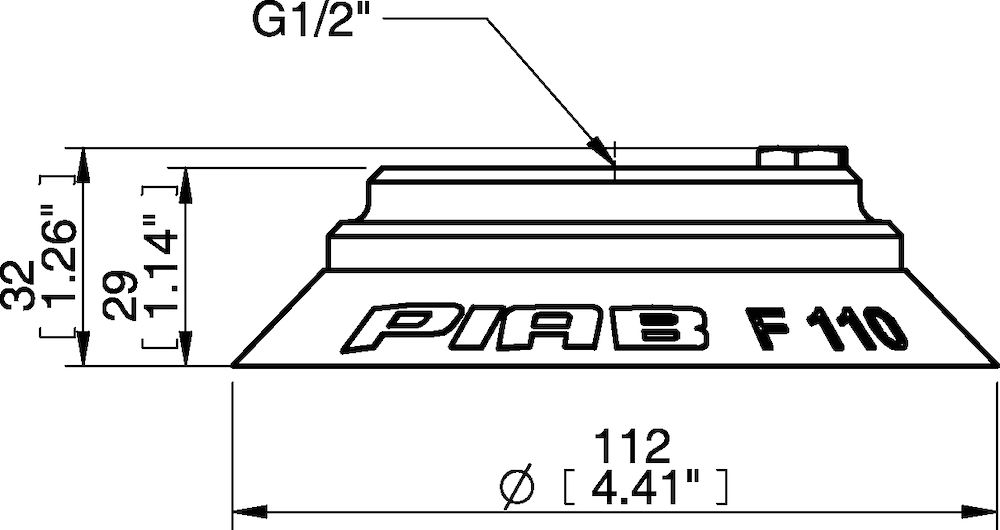

Piab F110.20.11UA / 3150021S Suction cup F110 Silicone, G1/2" female Al, with mesh filter

$128.87

Part Numbers

F110.20.11UA
3150021S

Highlights...

F110.20.11UA
By Piab
FREE Shipping on orders of $2,000 or more
Call for availability

Features

Material: Silicone (SIL)
Dimensions: 1.26 in. (length), 0.15 lb. (weight)
Fitting Size: 12 mm.
Curve Radius (Min): 250 mm.
Movement Vertical (Max): 4 mm.

This product is an accessory for the following products:

Piab 11NA / 0100557 Fitting 110 G3/8" female, clamp ring with mesh filter

A variety of fittings for suction cups.

$74.43

Piab 11NB / 0100559 Fitting 110, 3/8" NPSF female, with mesh filter

A variety of fittings for suction cups.

$74.43

Piab 11NC / 0100561 Fitting 110, G1/2" female, clamp ring with mesh filter

A variety of fittings for suction cups.

$74.43

Piab 11UA / 3250007 Fitting G1/2" female Al, with mesh filter

$74.43

Piab 11VC / 0100563 Fitting 110, G1/2" female, with cone valve

A variety of fittings for suction cups.

$113.41

Piab F110.20 / 3150132S Suction cup F110 Silicone

Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting.

Call for pricing

Piab F110.20.W / 3150038S Suction cup F110 Silicone with washer

Piab’s FDA/EU approved silicone flat suction cups are designed for hygienic and safe handling in food, pharmaceutical, and regulated environments. Crafted from compliant silicone, they offer a gentle grip and reliable performance on flat surfaces. The fla.

$75.95

Piab F110.30 / 3150132P Suction cup F110 Nitrile-PVC

$37.42

Piab F110.30.W / 3150038P Suction cup F110 Nitrile-PVC with washer

$44.74

Piab F110.37 / 3150132T Suction cup F110 HNBR

$89.41

Piab F110.37.W / 3150038T Suction cup F110 HNBR with washer

$82.21

Lifting Force Specifications

Vacuum Level	Lifting Force	Direction
20 -kPa	140 N	Vertical to the Surface
40 -kPa	0 N	Vertical to the Surface
50 -kPa	0 N	Vertical to the Surface
60 -kPa	420 N	Vertical to the Surface
90 -kPa	560 N	Vertical to the Surface
10 -kPa	0 N	Parallel to the Surface
20 -kPa	140 N	Parallel to the Surface
40 -kPa	0 N	Parallel to the Surface
60 -kPa	250 N	Parallel to the Surface
90 -kPa	300 N	Parallel to the Surface

Material Quality Specifications

Material	Quality
Wear Resistance	Good
Oil	Poor
Weather Ozone	Excellent
Hydrolysis	Fair
Petrol	Poor
Concentrated Acids	Poor
Alcohol	Good
Ethanol	Not applicable
Methanol	Not applicable
Oxidation	Excellent
