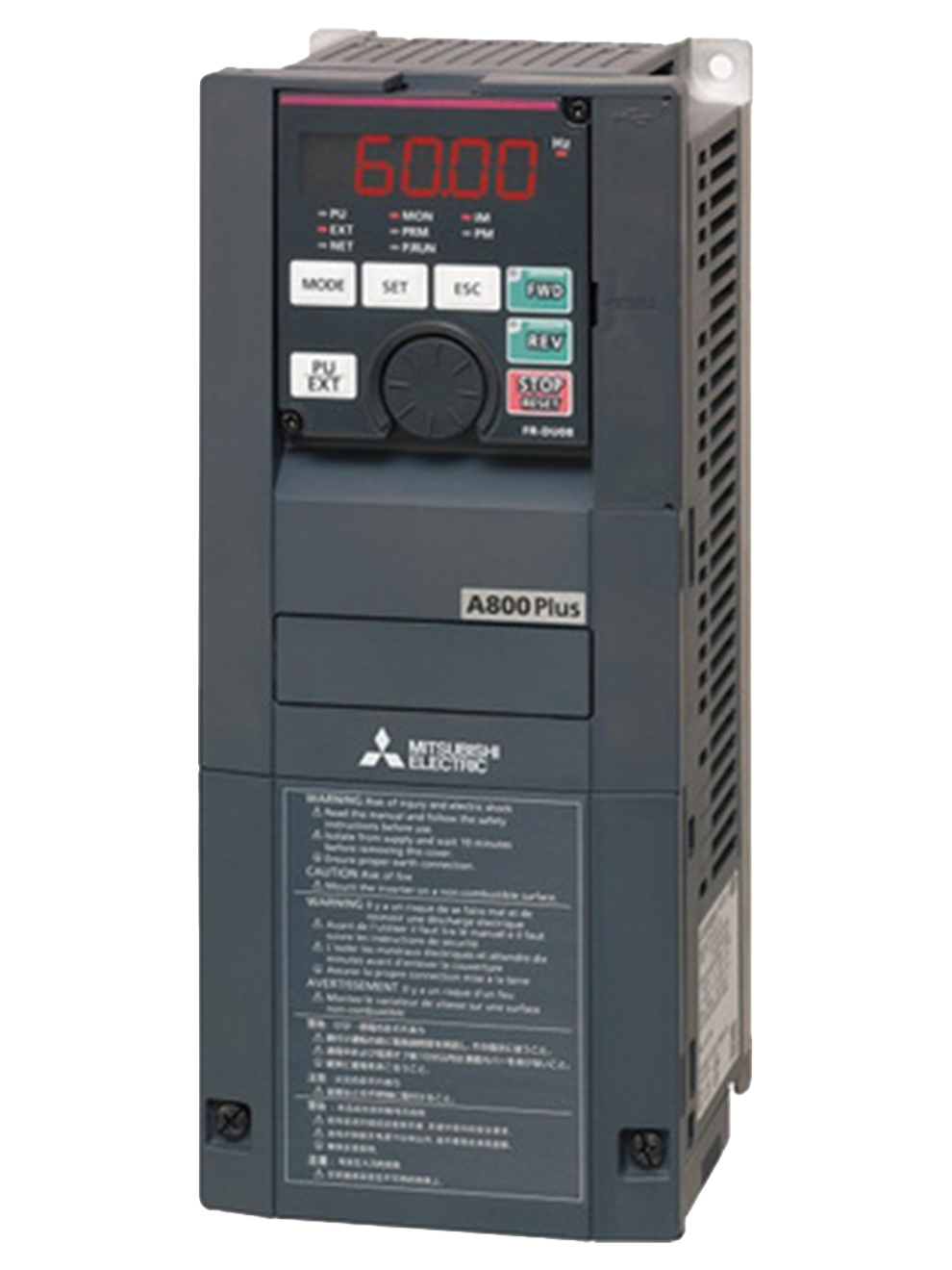

Mitsubishi FREQROL-A800 Series Variable Frequency Drive

Name: Mitsubishi FREQROL-A800 Series Variable Frequency Drive
Price: 1194.0 USD
Availability: InStock

Highly adaptable variable frequency drive with up to 590Hz range. Liquid cooling available. Crane control, roll-to-roll and automated warehouse advanced features.

Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.

Highlights...

By Mitsubishi
FREE Shipping
Some models in stock. View available part numbers.

Features

Control method: Soft-PWM control, high carrier frequency PWM control, optimum excitation control, vector control, and PM sensorless vector control
- PWM: Selectable among V/F control, Advanced magnetic flux vector control, Real sensorless vector control
Torque: 120% 0.3Hz (super light duty)
Capacity: up to 150HP standalone
- Up to 500HP with rectifier stage
Output frequency range: 0.2 to 590Hz
Frequency setting resolution:
- Analog input:
  - 0.015Hz/60Hz (terminal 2, 4: 0 to 10V/12 bits)
  - 0.03Hz/60Hz (0 to 5V/11 bits or 0 to 20mA /approx. 11 bits for terminals 2/4, 0 to 10V/12 bits for terminal 1)
  - 0.06Hz/60Hz (0 to ±5V/11 bits for terminal 1)
- Digital input: 0.01Hz
Frequency accuracy:
- Analog input: ±0.2% of max, output frequency (25°C ± 10°C)
- Digital input: ± 0.01% of set output frequency

The Mitsubishi FREQROL-A800 Series Variable Frequency Drive offers precise motor control for a wide range of industrial applications, with the ability to configure an inverter to meet the niche needs of various automation applications. This series offers a speed response of 50Hz, with a speed range of 200:1 open loop (1500:1 closed loop). The FR-A800 Series is built to support high speed motors up to 590Hz, including the new generation of IPM motor models. These drives feature STO functionality for SIL2/PLd category emergency stops, while conformal coated boards come standard for enhanced durability in harsh environments.

The FR-A800 Series drive features integrated 100Mbps Ethernet communications as standard, enabling seamless connection to MODBUS TCP/IP and CC-Link IE Field Basic networks without the need for additional option cards. The built-in web server (FR-A800-E model) provides remote monitoring and parameter adjustment capabilities, while automatic IP address detection simplifies system setup using FR-Configurator2 software. USB stick compatibility allows for quick parameter adjustments and diagnostic data transfer.

The FR-A800 Series also feature connectivity with the GOT 2000 series HMIs, and an enhanced internal PLC based on Mitsubishi's L Series processor with Function Block programming support. The multiple protocol capability and drive-to-drive communications system offer flexible integration. Sectional drives are available with expanded amperage and horsepower configurations when used with a FR-CC2 rectifier stage, contact a Motion World engineer for further details.

The FR-A800 Series includes sub-families of products with additional features to meet more specific application needs:

The FR-A800-GF: inbuilt CC-Link IE Field Network communication functionality.
The FR-A800 Plus:
- Crane control: anti-sway control; short time start-up; dedicated sequencing system; falling load detection; hoist and travel control.
- Roll-to-roll: diameter calculation; dedicated PI control system; adjustment for load inertia; material breakage detection between rolls; tapered change in tension function; SND rating for higher operating currents.
- Automated warehouse: full-closed control; anti-sway function; S-curve acceleration and deceleration to prevent load shifting during transport; dual feedback control; parameterization of target position, motor speed, acceleration/deceleration time.
The FR-A800-LC: liquid cooling for applications where heat is more difficult or expensive to dissipate via forced air-cooling such as in the mining industry. Inbuilt EMC filter.
