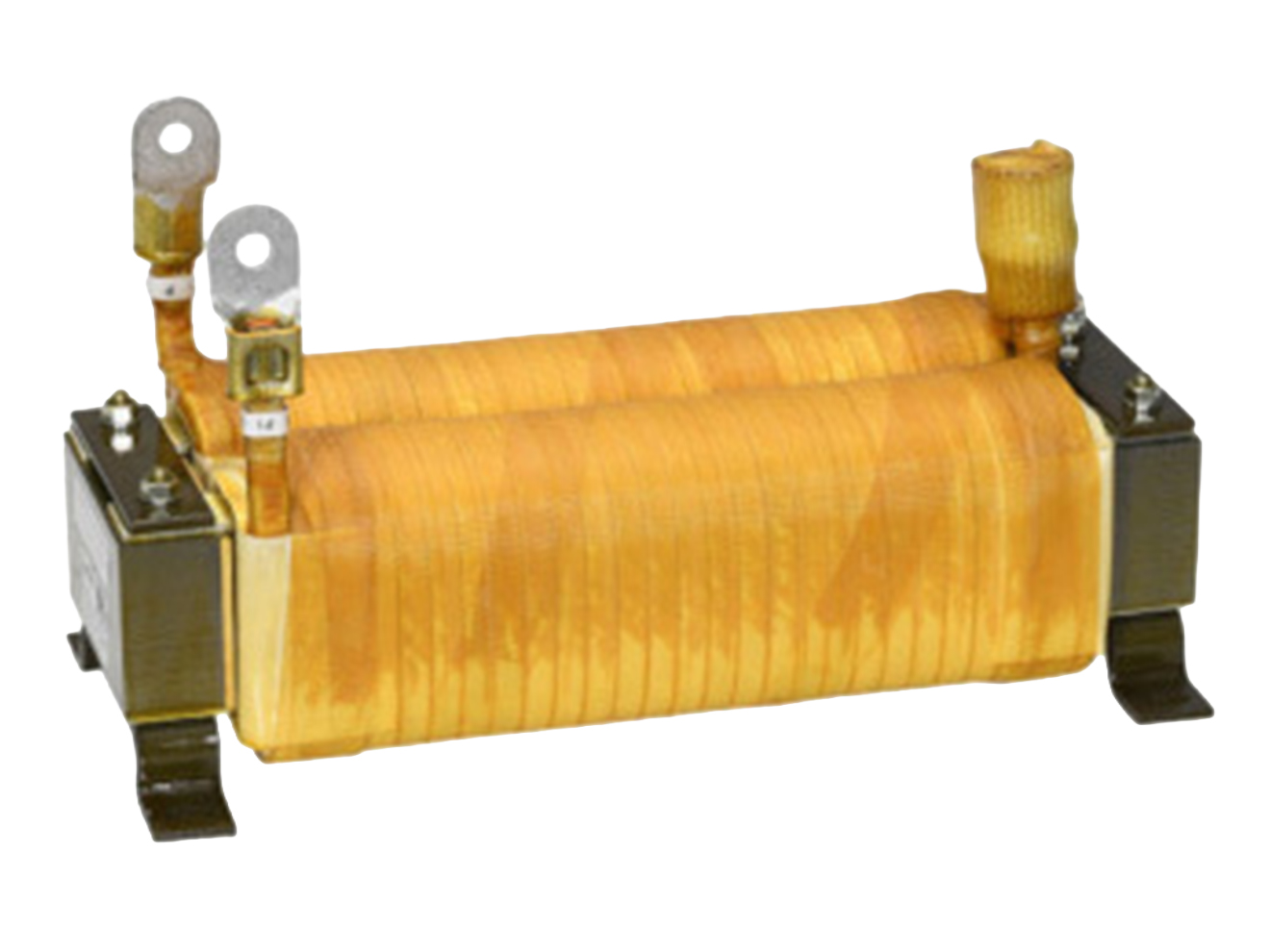

Mitsubishi FREQROL-HEL Series DC Reactor

DC link choke for harmonic current reduction and inverter input power factor improvement, for up to 355kW capacities. 200/400/600V classes available.

This model has 48 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated output: up to 355kW
  • Power supply: 200V, 400V, 600V
  • Compatible inverter series
    • FR-A800
    • FR-A800 Plus
    • FR-F800
    • FR-E700
    • FR-E800
    • FR-F700PJ
    • FR-D700
  • Select based on applicable motor capacity
  • For the 75kW or higher inverters or motors, always connect a DC reactor
    • Not included with FR-_800 Series inverters
