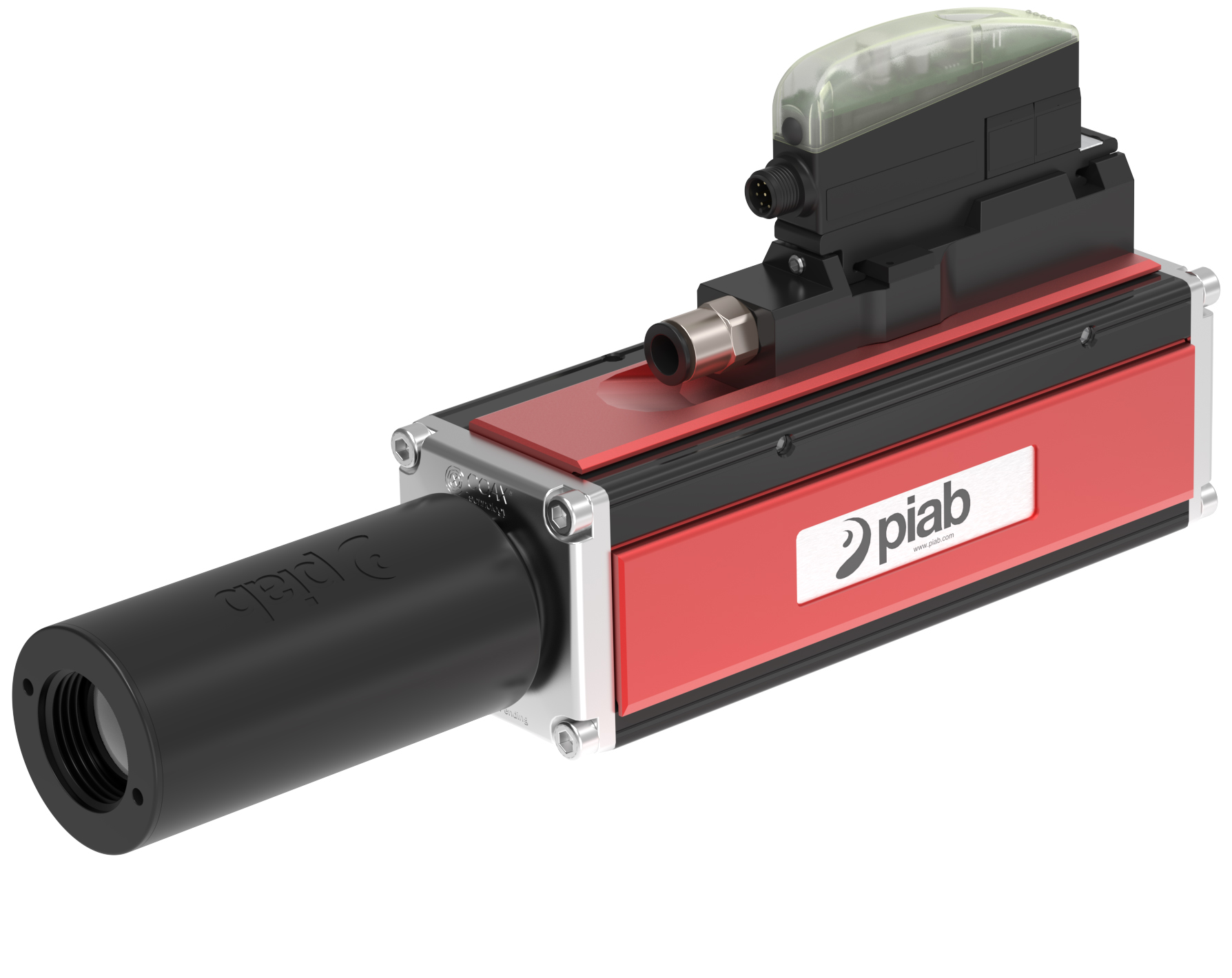

Piab P6010_AVM™2

Features

• COAX® P6010 multistage ejector with Pi, Si or Xi vacuum cartridge(s).
• AVM™2, Automatic Vacuum Management, unit with built-in control and monitoring functions.
• Valves for vacuum on/off and blow-off.
• Special safety feature for the version with normally closed on/off valve. It changes to an open valve if power is lost (E-stop).
• Analog vacuum sensor with two digital outputs, 16 pre-set combinations of signal levels to choose from.
• Digital display with “-kPa” or “-inHg” as unit options.
• Integrated energy saving function (ES) that minimizes the air consumption in sealed systems. The ES function can be activated manually or via a signal (signal override).
• Three-color LED status indicators for valves, signal outputs and ES.
• On AVM™2 units for P6010, there is an option to blow from a separate port to maximize blow-off efficiency in the vacuum system.
• 1-4 cartridges.
• Material: Nitrile (NBR);Al;PA;PMMA;SS;TPE
• Weight (Max): 2100 oz.
• Item Feed Pressure (Max): 0.7
• Item Noise Level (Min): 50
• Item Noise Level (Max): 70
