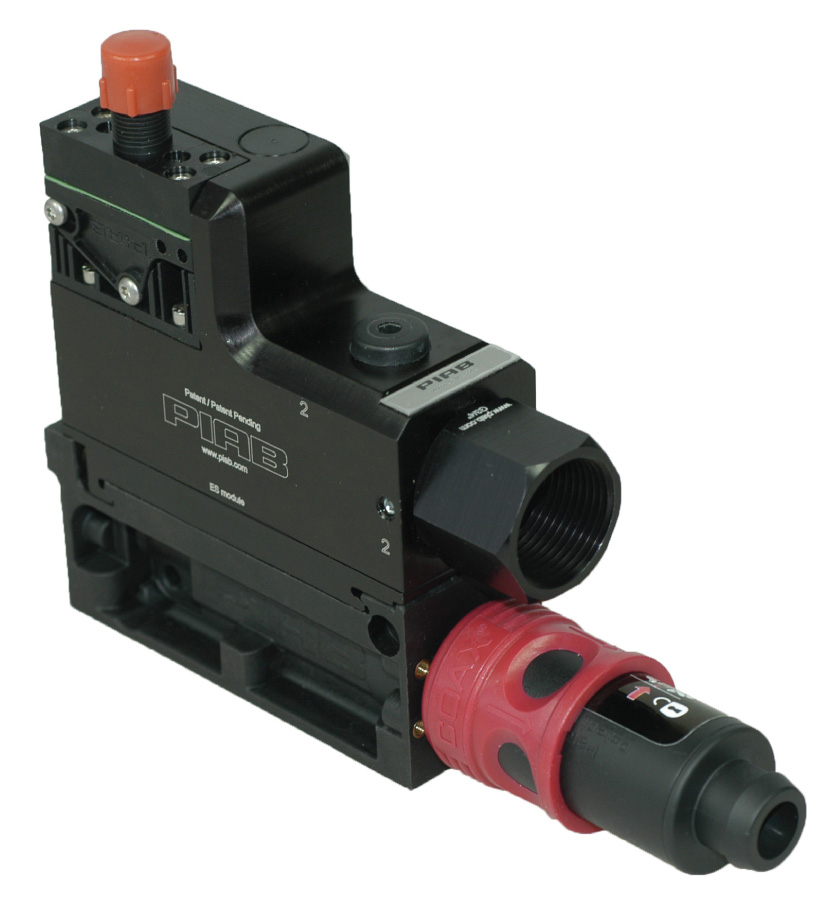

Piab P5010_ES

Call for pricing
Part Numbers
  • P5010_ES
  • P5010_ES
Highlights...

Features

  • P5010 multistage ejector with Pi, Si or Xi COAX® push-in cartridge.
  • Integrated air-saving function (ES) that minimises the air consumption by controlling the incoming air flow to the pump.
  • Operates on a roughly similar system to that of a thermostat in a heating system.
  • Large hysteresis is recommended for sealed vacuum handling applications such as metal sheet, glass or plastic handling.
  • Small hysteresis is recommended if a very accurate vacuum level has to be maintained in the process.
  • Adjustable ES switch level.
  • Pneumatic function.
  • Configurable and modular design.
  • Separate port with built-in blow-off check valve. High flow capacity to maximize efficiency to release an object.
  • Material: Nitrile (NBR);Al;CuZn;PA;POM;SS
  • Weight (Max): 890 oz.
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 68
  • Item Noise Level (Max): 71

Ejector Data Specifications

Ejector Specification Pi48-2
Feed Pressure | MPa 0.3
Air Consumption | Nl/s 2
Vacuum (Max) | -kPa 90
Vacuum Flow at 0 -kPa | Nl/s 2.8
Vacuum Flow at 10 -kPa | Nl/s 2.5
Vacuum Flow at 20 -kPa | Nl/s 1.8
Vacuum Flow at 30 -kPa | Nl/s 1.1
Vacuum Flow at 40 -kPa | Nl/s 0.65
Vacuum Flow at 50 -kPa | Nl/s 0.5
Vacuum Flow at 60 -kPa | Nl/s 0.35
Vacuum Flow at 70 -kPa | Nl/s 0.25
Vacuum Flow at 80 -kPa | Nl/s 0.1
Evacuation Time to Reach 10 -kPa | s/l 0.038
Evacuation Time to Reach 20 -kPa | s/l 0.084
Evacuation Time to Reach 30 -kPa | s/l 0.153
Evacuation Time to Reach 40 -kPa | s/l 0.267
Evacuation Time to Reach 50 -kPa | s/l 0.441
Evacuation Time to Reach 60 -kPa | s/l 0.677
Evacuation Time to Reach 70 -kPa | s/l 1.01
Evacuation Time to Reach 80 -kPa | s/l 1.581
