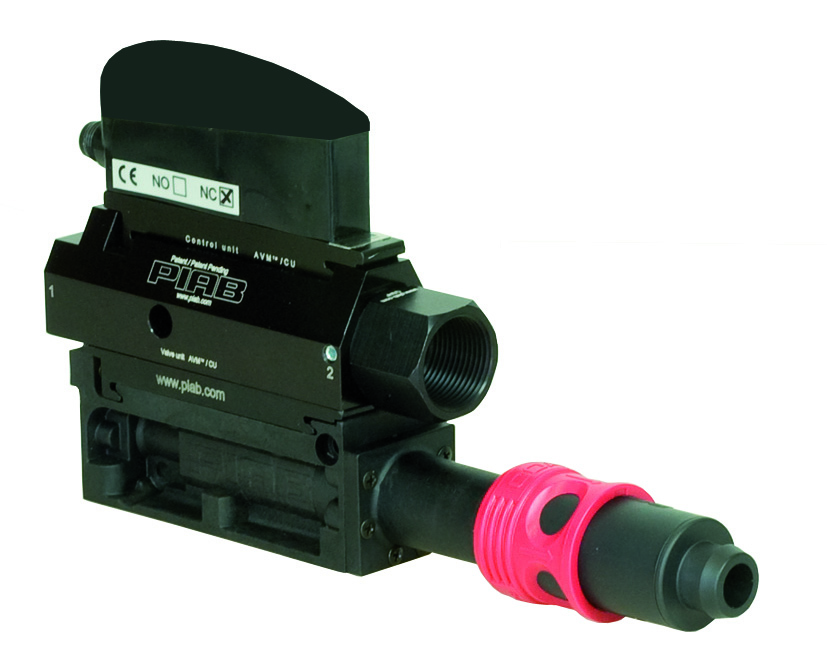

Piab P5010_CU

Call for pricing
Part Numbers
  • P5010_CU
  • P5010_CU
Highlights...

Features

  • P5010 multistage ejector with Pi, Si or Xi COAX® push-in cartridge(s).
  • Integrated Control Unit (CU) with electric valves for vacuum on-off and blow-off control.
  • Mechanical valve for blow-off flow adjustment.
  • Enhanced blow-off power thanks to a directed blow-off pipe.
  • Slim, compact, configurable and modular design.
  • Material: Nitrile (NBR);Al;CuZn;PA;PE;PMMA;SS
  • Weight (Max): 720 oz.
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 68
  • Item Noise Level (Max): 71

Ejector Data Specifications

Ejector Specification Pi48-2
Feed Pressure | MPa 0.3
Air Consumption | Nl/s 2
Vacuum (Max) | -kPa 90
Vacuum Flow at 0 -kPa | Nl/s 2.8
Vacuum Flow at 10 -kPa | Nl/s 2.5
Vacuum Flow at 20 -kPa | Nl/s 1.8
Vacuum Flow at 30 -kPa | Nl/s 1.1
Vacuum Flow at 40 -kPa | Nl/s 0.65
Vacuum Flow at 50 -kPa | Nl/s 0.5
Vacuum Flow at 60 -kPa | Nl/s 0.35
Vacuum Flow at 70 -kPa | Nl/s 0.25
Vacuum Flow at 80 -kPa | Nl/s 0.1
Evacuation Time to Reach 10 -kPa | s/l 0.038
Evacuation Time to Reach 20 -kPa | s/l 0.084
Evacuation Time to Reach 30 -kPa | s/l 0.153
Evacuation Time to Reach 40 -kPa | s/l 0.267
Evacuation Time to Reach 50 -kPa | s/l 0.441
Evacuation Time to Reach 60 -kPa | s/l 0.677
Evacuation Time to Reach 70 -kPa | s/l 1.01
Evacuation Time to Reach 80 -kPa | s/l 1.581
