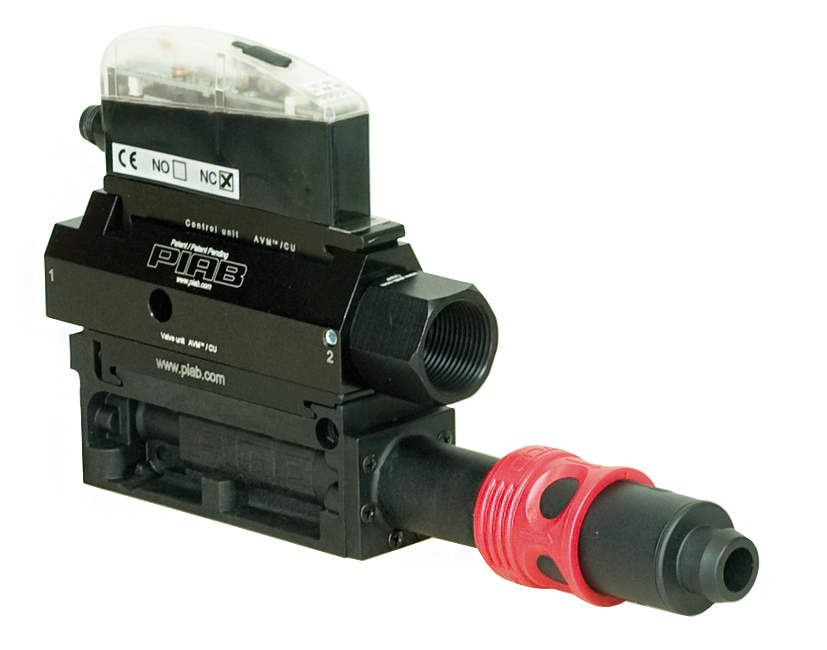

Piab P5010_AVM™2

Features

• P5010 multistage ejector with Pi, Si or Xi COAX® push-in cartridge(s).
• AVM™2, Automatic Vacuum Management, unit with built-in control and monitoring functions.
• Valves for vacuum on/off, blow-off, blow-off flow control and non-return valve.
• Option with Normally Closed "fail safe" on/off valve (NC). It changes to an open valve if power is lost and vacuum will be generated. A conventional normally closed on/off valve (NC 2) is also available. It stays closed if electrical power is lost or removed.
• Option with automatic blow-off (1 sec) reduces number of outputs needed from PLC or I/O box.
• Enhanced blow-off effect thanks to a directed blow-off pipe.
• Analog vacuum sensor with two digital outputs, 16 pre-set combinations of signal levels to choose from.
• Digital display with “-kPa” or “-inHg” as unit options.
• Integrated energy saving function (ES) that minimizes the air consumption in sealed systems. The ES function can be activated manually or via a signal (signal override).
• Three-color LED status indicators for valves, signal outputs and ES.
• Material: Nitrile (NBR);Al;CuZn;PA;PE;PMMA;SS
• Weight (Max): 720 oz.
• Item Feed Pressure (Max): 0.7
• Item Noise Level (Min): 68
• Item Noise Level (Max): 71
