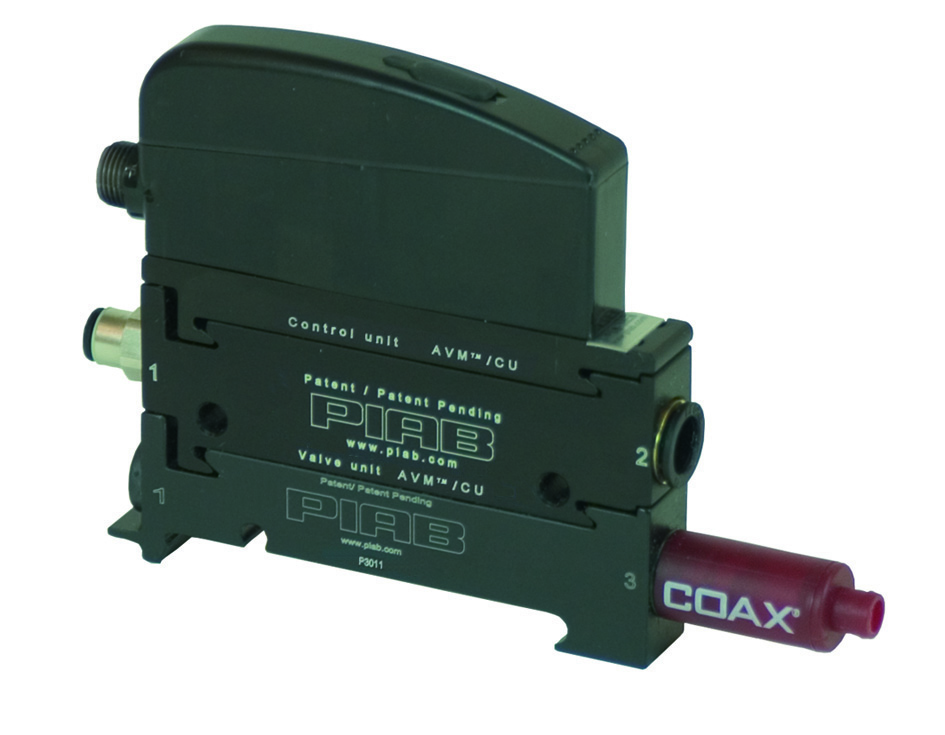

Piab P3010_CU

Name: Piab P3010_CU
Brand: Piab
Availability: BackOrder

Call for pricing

Part Numbers

Highlights...

Patented multistage COAX® cartridge - MINI - with Pi, Si, Xi cartridge.
Integrated Control Unit (CU) with electric valves for vacuum on-off and blow-off control.
Mechanical valve for blow-off flow adjustment.
Slim, compact, configurable and modular design.
Material: Nitrile (NBR);Al;PA;PMMA;SS
Weight (Max): 316 oz.
Item Feed Pressure (Max): 0.7
Item Noise Level (Min): 66
Item Noise Level (Max): 68

Ejector Specification	Pi12-3
Feed Pressure \| MPa	0.32
Air Consumption \| Nl/s	0.44
Vacuum (Max) \| -kPa	90
Vacuum Flow at 0 -kPa \| Nl/s	1.4
Vacuum Flow at 10 -kPa \| Nl/s	0.6
Vacuum Flow at 20 -kPa \| Nl/s	0.44
Vacuum Flow at 30 -kPa \| Nl/s	0.27
Vacuum Flow at 40 -kPa \| Nl/s	0.19
Vacuum Flow at 50 -kPa \| Nl/s	0.14
Vacuum Flow at 60 -kPa \| Nl/s	0.1
Vacuum Flow at 70 -kPa \| Nl/s	0.06
Vacuum Flow at 80 -kPa \| Nl/s	0.03
Evacuation Time to Reach 10 -kPa \| s/l	0.08
Evacuation Time to Reach 20 -kPa \| s/l	0.23
Evacuation Time to Reach 30 -kPa \| s/l	0.49
Evacuation Time to Reach 40 -kPa \| s/l	1
Evacuation Time to Reach 50 -kPa \| s/l	1.7
Evacuation Time to Reach 60 -kPa \| s/l	2.6
Evacuation Time to Reach 70 -kPa \| s/l	3.9
Evacuation Time to Reach 80 -kPa \| s/l	6.3
