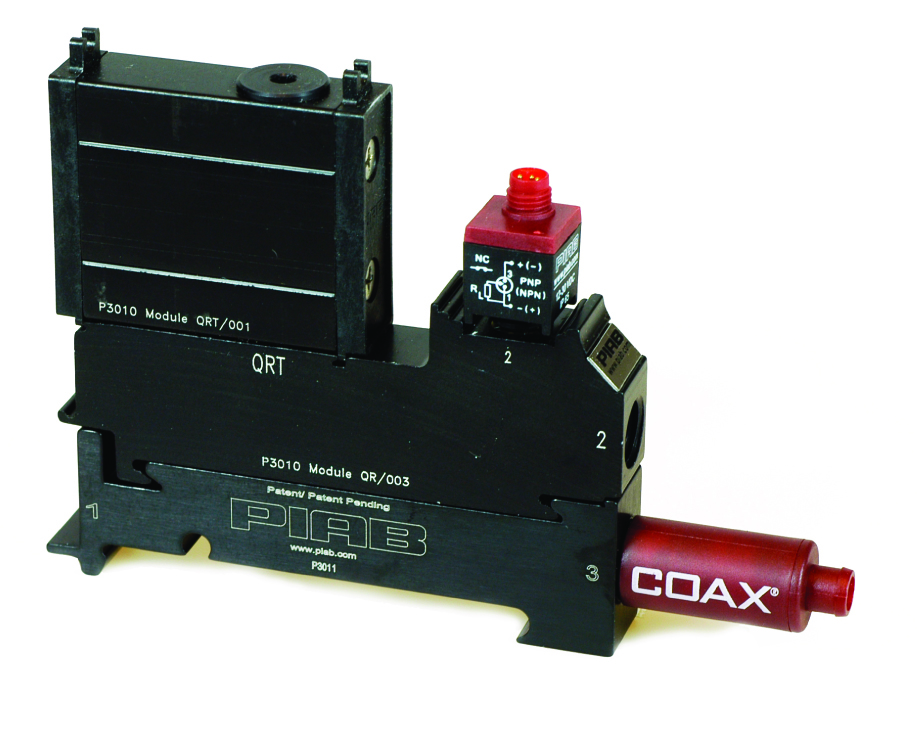

Piab P3010_Vacuum_switch_mini_pre-set_push-in

Call for pricing
Part Numbers
  • P3010_Vacuum_switch_mini_pre-set_push-in
  • P3010_Vacuum_switch_mini_pre-set_push-in
Highlights...

Features

  • Patented multistage COAX® cartridge - MINI - with Pi, Si, Xi cartridge.
  • Electromechanical vacuum switch with digital output.
  • Built-in red LED that indicates status.
  • Includes a flow-through silencer and a built-in vacuum filter for harsh environments.
  • High system reliability in case of fluctuating or low feed pressure.
  • Suitable for fast and reliable evacuation in sealed systems.
  • Material: Thermoplastic Polyurethane (TPE-U);Nitrile (NBR);Al;CuZn (Au);PA;PP;SS;Steel
  • Weight (Max): 425 oz.
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 66
  • Item Noise Level (Max): 68

Ejector Data Specifications

Ejector Specification Pi12-3
Feed Pressure | MPa 0.32
Air Consumption | Nl/s 0.44
Vacuum (Max) | -kPa 90
Vacuum Flow at 0 -kPa | Nl/s 1.4
Vacuum Flow at 10 -kPa | Nl/s 0.6
Vacuum Flow at 20 -kPa | Nl/s 0.44
Vacuum Flow at 30 -kPa | Nl/s 0.27
Vacuum Flow at 40 -kPa | Nl/s 0.19
Vacuum Flow at 50 -kPa | Nl/s 0.14
Vacuum Flow at 60 -kPa | Nl/s 0.1
Vacuum Flow at 70 -kPa | Nl/s 0.06
Vacuum Flow at 80 -kPa | Nl/s 0.03
Evacuation Time to Reach 10 -kPa | s/l 0.08
Evacuation Time to Reach 20 -kPa | s/l 0.23
Evacuation Time to Reach 30 -kPa | s/l 0.49
Evacuation Time to Reach 40 -kPa | s/l 1
Evacuation Time to Reach 50 -kPa | s/l 1.7
Evacuation Time to Reach 60 -kPa | s/l 2.6
Evacuation Time to Reach 70 -kPa | s/l 3.9
Evacuation Time to Reach 80 -kPa | s/l 6.3
