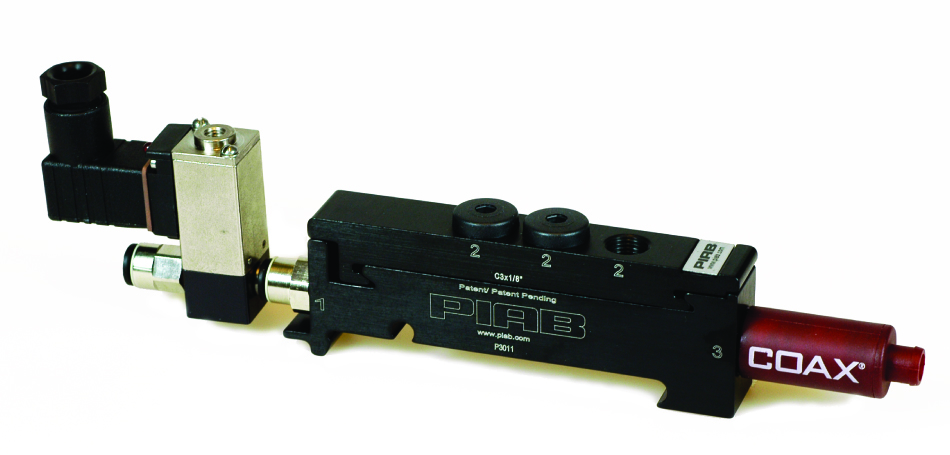

Piab P3010_Solenoid_Valve

Call for pricing
Part Numbers
  • P3010_Solenoid_Valve
  • P3010_Solenoid_Valve
Highlights...

Features

  • Patented multistage COAX® cartridge - MINI - with Pi, Si, Xi cartridge.
  • DS 23 3/2 valve suitable for compressed air, filtration 40μ
  • 2.5 W solenoid
  • Manual override
  • Includes a flow-through silencer and a built-in vacuum filter for harsh environments.
  • Slim, compact, configurable and modular design.
  • Low weight.
  • Material: Nitrile (NBR);Al;CuZn;Nickel;PA;POM;PP;SS
  • Weight (Max): 485 oz.
  • Item Feed Pressure (Min): 0.2
  • Item Feed Pressure (Max): 0.6

Ejector Data Specifications

Ejector Specification Pi12-3
Feed Pressure | MPa 0.32
Air Consumption | Nl/s 0.44
Vacuum (Max) | -kPa 90
Vacuum Flow at 0 -kPa | Nl/s 1.4
Vacuum Flow at 10 -kPa | Nl/s 0.6
Vacuum Flow at 20 -kPa | Nl/s 0.44
Vacuum Flow at 30 -kPa | Nl/s 0.27
Vacuum Flow at 40 -kPa | Nl/s 0.19
Vacuum Flow at 50 -kPa | Nl/s 0.14
Vacuum Flow at 60 -kPa | Nl/s 0.1
Vacuum Flow at 70 -kPa | Nl/s 0.06
Vacuum Flow at 80 -kPa | Nl/s 0.03
Evacuation Time to Reach 10 -kPa | s/l 0.08
Evacuation Time to Reach 20 -kPa | s/l 0.23
Evacuation Time to Reach 30 -kPa | s/l 0.49
Evacuation Time to Reach 40 -kPa | s/l 1
Evacuation Time to Reach 50 -kPa | s/l 1.7
Evacuation Time to Reach 60 -kPa | s/l 2.6
Evacuation Time to Reach 70 -kPa | s/l 3.9
Evacuation Time to Reach 80 -kPa | s/l 6.3
