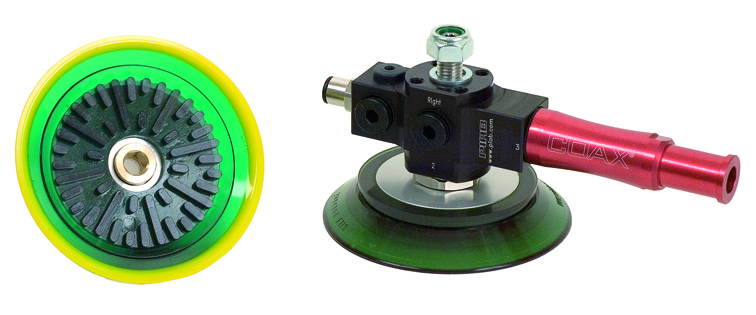

Piab VGS™5010_F110P

Call for pricing
Part Numbers
  • VGS™5010_F110P
  • VGS™5010_F110P
Highlights...

Features

  • Patented COAX® technology.
  • Suitable for all flat and rough surfaces.
  • Good stability and little inherent movement due to high friction of the rubber material.
  • Recommended when the lifting force is parallell to the surface of the object.
  • Available with a two or three-stage COAX® cartridge MIDI. Choose an Si cartridge for extra vacuum flow, a Pi cartridge for high performance at low feed pressure or an Xi cartridge when high flow and deep vacuum is needed.
  • The three-stage cartridge will give extra high initial vacuum flow, suitable in high speed applications.
  • Easy installation and flexible positioning with several mounting options.
  • Material: Nitrile (NBR);Al;PA;PP;SS;Polyurethane (PU)
  • Weight (Max): 576 oz.
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 73
  • Item Noise Level (Max): 83

Ejector Data Specifications

Ejector Specification Pi48-2
Feed Pressure | MPa 0.3
Air Consumption | Nl/s 2
Vacuum (Max) | -kPa 90
Vacuum Flow at 0 -kPa | Nl/s 2.8
Vacuum Flow at 10 -kPa | Nl/s 2.5
Vacuum Flow at 20 -kPa | Nl/s 1.8
Vacuum Flow at 30 -kPa | Nl/s 1.1
Vacuum Flow at 40 -kPa | Nl/s 0.65
Vacuum Flow at 50 -kPa | Nl/s 0.5
Vacuum Flow at 60 -kPa | Nl/s 0.35
Vacuum Flow at 70 -kPa | Nl/s 0.25
Vacuum Flow at 80 -kPa | Nl/s 0.1
Evacuation Time to Reach 10 -kPa | s/l 0.038
Evacuation Time to Reach 20 -kPa | s/l 0.084
Evacuation Time to Reach 30 -kPa | s/l 0.153
Evacuation Time to Reach 40 -kPa | s/l 0.267
Evacuation Time to Reach 50 -kPa | s/l 0.441
Evacuation Time to Reach 60 -kPa | s/l 0.677
Evacuation Time to Reach 70 -kPa | s/l 1.01
Evacuation Time to Reach 80 -kPa | s/l 1.581
