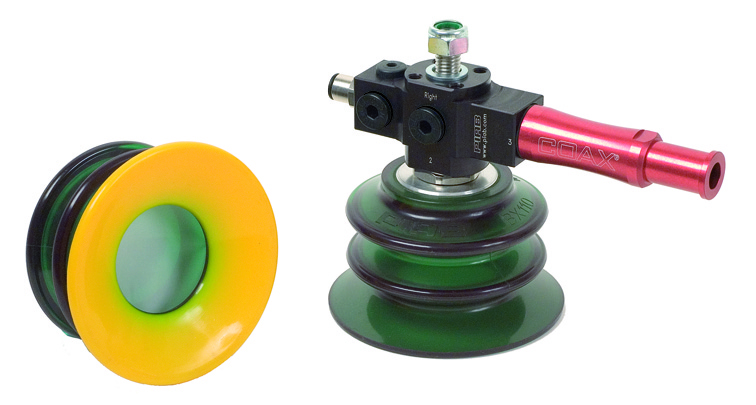

Piab VGS™5010_BX110P

Name: Piab VGS™5010_BX110P
Brand: Piab
Availability: BackOrder

Call for pricing

Part Numbers

Highlights...

Patented COAX® technology.
Suitable for level adjustment and for uneven and porous surfaces such as cardboard, etc.
In the two-colored version the bellows and the sealing lip are of different hardness, which makes the suction cup strong and, at the same time, soft and flexible with good sealing capability.
A filter disk inside the cup keeps dust out of the system.
Available with a two or three-stage COAX® cartridge MIDI. Choose an Si cartridge for extra vacuum flow, a Pi cartridge for high performance at low feed pressure or an Xi cartridge when high flow and deep vacuum is needed.
The three-stage cartridge will give extra high initial vacuum flow, suitable in high speed applications.
Easy installation and flexible positioning with several mounting options.
Material: Nitrile (NBR);Al;PA;PP;SS;Polyurethane (PU)
Weight (Max): 673 oz.
Item Feed Pressure (Max): 0.7
Item Noise Level (Min): 73
Item Noise Level (Max): 83

Ejector Specification	Pi48-2
Feed Pressure \| MPa	0.3
Air Consumption \| Nl/s	2
Vacuum (Max) \| -kPa	90
Vacuum Flow at 0 -kPa \| Nl/s	2.8
Vacuum Flow at 10 -kPa \| Nl/s	2.5
Vacuum Flow at 20 -kPa \| Nl/s	1.8
Vacuum Flow at 30 -kPa \| Nl/s	1.1
Vacuum Flow at 40 -kPa \| Nl/s	0.65
Vacuum Flow at 50 -kPa \| Nl/s	0.5
Vacuum Flow at 60 -kPa \| Nl/s	0.35
Vacuum Flow at 70 -kPa \| Nl/s	0.25
Vacuum Flow at 80 -kPa \| Nl/s	0.1
Evacuation Time to Reach 10 -kPa \| s/l	0.038
Evacuation Time to Reach 20 -kPa \| s/l	0.084
Evacuation Time to Reach 30 -kPa \| s/l	0.153
Evacuation Time to Reach 40 -kPa \| s/l	0.267
Evacuation Time to Reach 50 -kPa \| s/l	0.441
Evacuation Time to Reach 60 -kPa \| s/l	0.677
Evacuation Time to Reach 70 -kPa \| s/l	1.01
Evacuation Time to Reach 80 -kPa \| s/l	1.581
