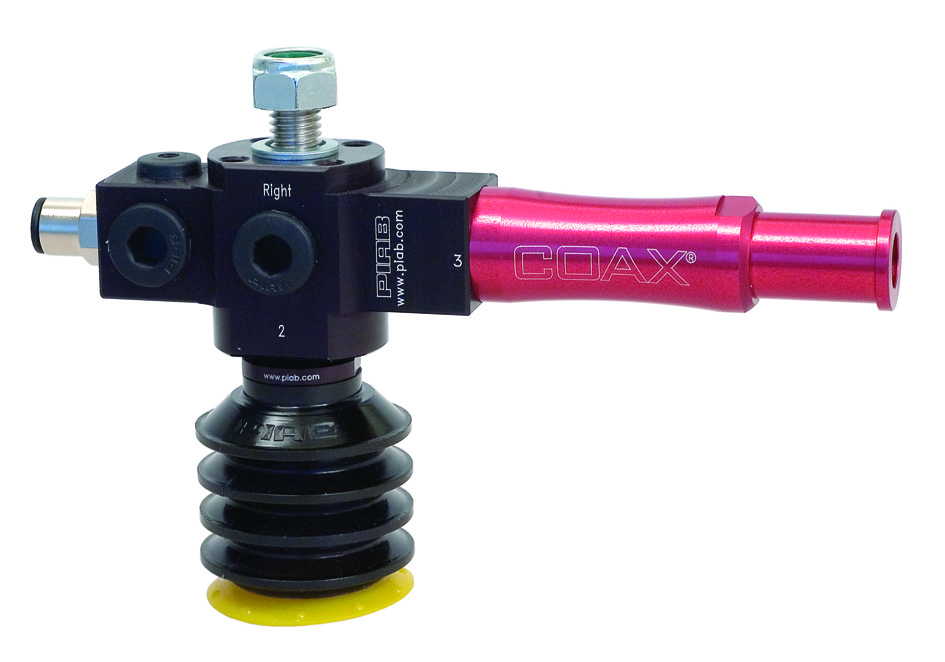

Piab VGS™5010_BL50-3P

Call for pricing
Part Numbers
  • VGS™5010_BL50-3P
  • VGS™5010_BL50-3P
Highlights...

Features

  • Patented COAX® technology.
  • Suitable for high flow applications such as plastic bag handling.
  • The design provides enough strength and stability when handling plastic bags, while providing the softness and flexibility required to seal on uneven surfaces.
  • This suction cup is made of DURAFLEX® material and the bellows and sealing lip are of different hardness.The suction cup has a special high-flow fitting.
  • Available with a two or three-stage COAX® cartridge MIDI. Choose an Si cartridge for extra vacuum flow, a Pi cartridge for high performance at low feed pressure or an Xi cartridge when high flow and deep vacuum is needed.
  • The three-stage cartridge will give extra high initial vacuum flow, suitable in high speed applications.
  • Easy installation and flexible positioning with several mounting options.
  • Material: Nitrile (NBR);Al;PA;PP;SS;Polyurethane (PU)
  • Weight (Max): 421 oz.
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 73
  • Item Noise Level (Max): 83

Ejector Data Specifications

Ejector Specification Pi48-2
Feed Pressure | MPa 0.3
Air Consumption | Nl/s 2
Vacuum (Max) | -kPa 90
Vacuum Flow at 0 -kPa | Nl/s 2.8
Vacuum Flow at 10 -kPa | Nl/s 2.5
Vacuum Flow at 20 -kPa | Nl/s 1.8
Vacuum Flow at 30 -kPa | Nl/s 1.1
Vacuum Flow at 40 -kPa | Nl/s 0.65
Vacuum Flow at 50 -kPa | Nl/s 0.5
Vacuum Flow at 60 -kPa | Nl/s 0.35
Vacuum Flow at 70 -kPa | Nl/s 0.25
Vacuum Flow at 80 -kPa | Nl/s 0.1
Evacuation Time to Reach 10 -kPa | s/l 0.038
Evacuation Time to Reach 20 -kPa | s/l 0.084
Evacuation Time to Reach 30 -kPa | s/l 0.153
Evacuation Time to Reach 40 -kPa | s/l 0.267
Evacuation Time to Reach 50 -kPa | s/l 0.441
Evacuation Time to Reach 60 -kPa | s/l 0.677
Evacuation Time to Reach 70 -kPa | s/l 1.01
Evacuation Time to Reach 80 -kPa | s/l 1.581
