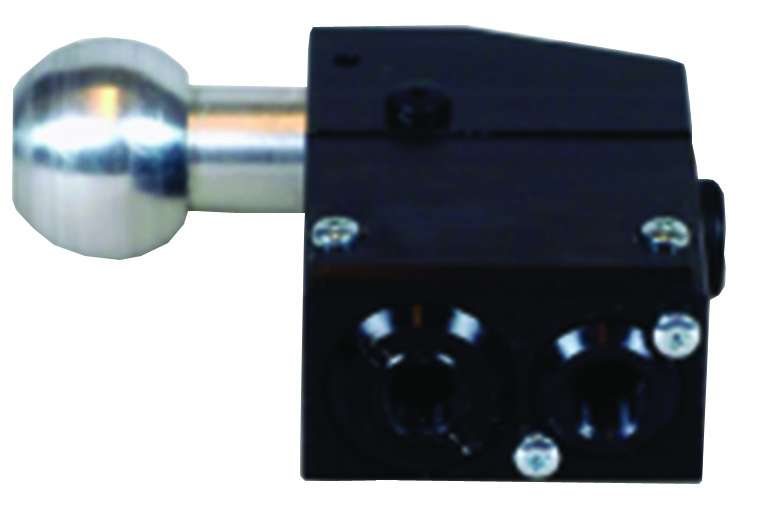

Piab VGS™3040_with_blow-off

Call for pricing
Part Numbers
  • VGS™3040_with_blow-off
  • VGS™3040_with_blow-off
Highlights...

Features

  • COAX® cartridge integrated.
  • Built-in blow off check valve for fast release of object.
  • Available in lock pin 16, 19 or ball joint mountings, industry standard.
  • Available with level compensator to compensate for differences in level of object.
  • Material: Nitrile (NBR);Al;CuZn;PA;SS
  • Weight (Max): 284 oz.
  • Item Feed Pressure (Min): 0.1
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 65
  • Item Noise Level (Max): 74

Ejector Data Specifications

Ejector Specification Si08-2
Feed Pressure | MPa 0.6
Air Consumption | Nl/s 0.44
Vacuum (Max) | -kPa 75
Pressure (Max) | kPa 70
Vacuum Flow at 0 -kPa | Nl/s 0.77
Vacuum Flow at 10 -kPa | Nl/s 0.67
Vacuum Flow at 20 -kPa | Nl/s 0.51
Vacuum Flow at 30 -kPa | Nl/s 0.33
Vacuum Flow at 40 -kPa | Nl/s 0.23
Vacuum Flow at 50 -kPa | Nl/s 0.16
Vacuum Flow at 60 -kPa | Nl/s 0.12
Vacuum Flow at 70 -kPa | Nl/s 0.08
Evacuation Time to Reach 10 -kPa | s/l 0.14
Evacuation Time to Reach 20 -kPa | s/l 0.31
Evacuation Time to Reach 30 -kPa | s/l 0.55
Evacuation Time to Reach 40 -kPa | s/l 0.9
Evacuation Time to Reach 50 -kPa | s/l 1.4
Evacuation Time to Reach 60 -kPa | s/l 2.1
Evacuation Time to Reach 70 -kPa | s/l 3.1
Blow Flow at 0 kPa | Nl/s 1.21
Blow Flow at 10 kPa | Nl/s 1.13
Blow Flow at 20 kPa | Nl/s 1
Blow Flow at 30 kPa | Nl/s 0.84
Blow Flow at 40 kPa | Nl/s 0.78
Blow Flow at 50 kPa | Nl/s 0.73
Blow Flow at 60 kPa | Nl/s 0.65
Blow Flow at 70 kPa | Nl/s 0.53
