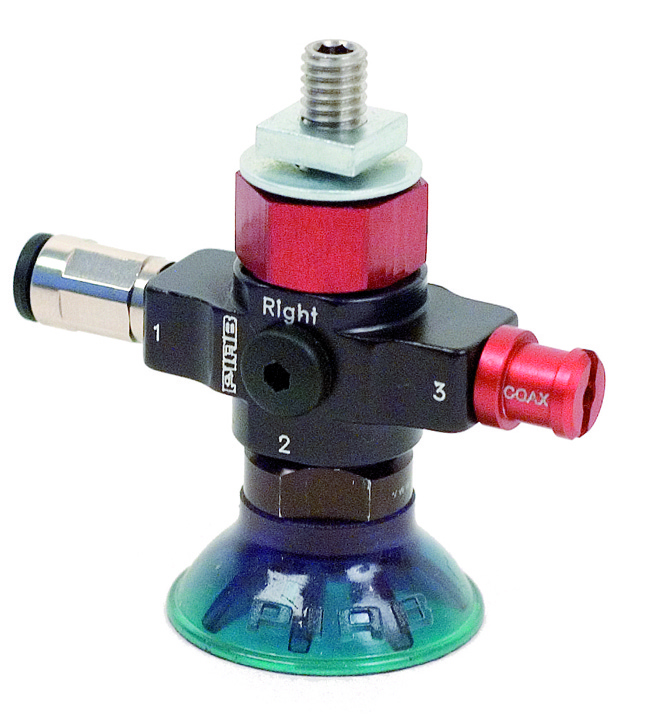

Piab VGS™2010_FC25P

Call for pricing
Part Numbers
  • VGS™2010_FC25P
  • VGS™2010_FC25P
Highlights...

Features

  • Patented COAX® technology.
  • Suitable for lifting small objects and narrow parts as well as also slightly domed surfaces.
  • Thanks to good friction of the rubber material the cups can withstand high shear forces at rapid acceleration.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • Available with a two-stage COAX® cartridge MICRO. Configurable to your specific needs. Choose Bi for low feed pressure, Si for high vacuum flow, Xi for extra vacuum and Ti at 58/87 psi for extra capacity/dirt tolerance..
  • Material: Nitrile (NBR);Al;PA;SS;TPE;Polyurethane (PU)
  • Weight (Max): 35 oz.
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 55
  • Item Noise Level (Max): 61

Ejector Data Specifications

Ejector Specification Bi03-2
Feed Pressure | MPa 0.18
Air Consumption | Nl/s 0.14
Vacuum (Max) | -kPa 83
Vacuum Flow at 0 -kPa | Nl/s 0.23
Vacuum Flow at 10 -kPa | Nl/s 0.15
Vacuum Flow at 20 -kPa | Nl/s 0.06
Vacuum Flow at 30 -kPa | Nl/s 0.04
Vacuum Flow at 40 -kPa | Nl/s 0.035
Vacuum Flow at 50 -kPa | Nl/s 0.023
Vacuum Flow at 60 -kPa | Nl/s 0.013
Vacuum Flow at 70 -kPa | Nl/s 0.006
Evacuation Time to Reach 10 -kPa | s/l 0.5
Evacuation Time to Reach 20 -kPa | s/l 1.4
Evacuation Time to Reach 30 -kPa | s/l 3.9
Evacuation Time to Reach 40 -kPa | s/l 6.4
Evacuation Time to Reach 50 -kPa | s/l 10
Evacuation Time to Reach 60 -kPa | s/l 16
Evacuation Time to Reach 70 -kPa | s/l 28
Evacuation Time to Reach 80 -kPa | s/l 51
