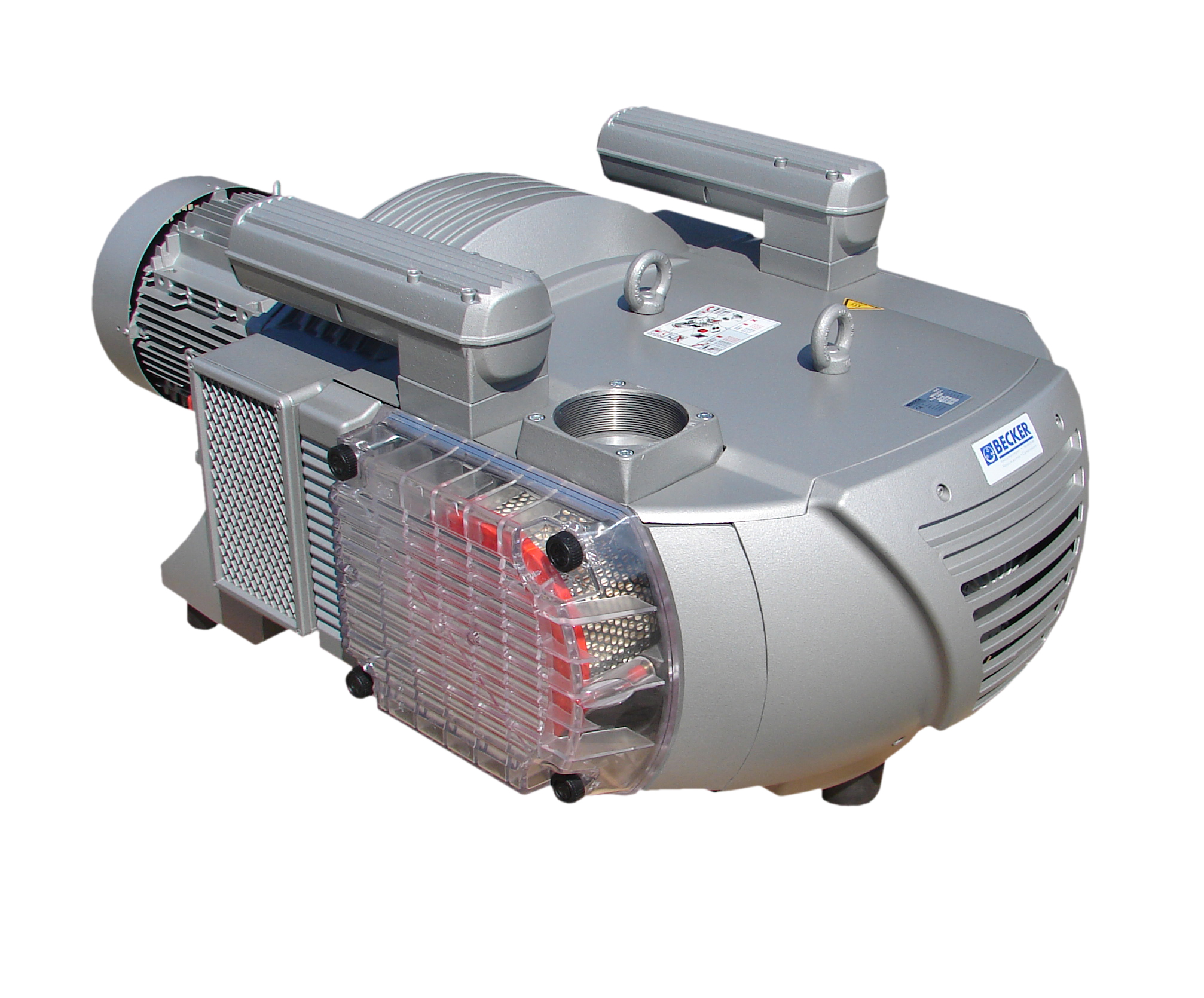

Piab 02.09.790 Vane pump 1200/1600 IE3 460V, 208V, 230V

Call for pricing
Part Numbers
  • 02.09.790
  • 0209790
Highlights...

Features

  • Electro mechanical generated vacuum
  • High vacuum flow
  • Integrated inlet filter and control valves
  • Oil-free
  • Vibration stable
  • With non-return valve
  • Material: Iron FE
  • Weight (Max): 411000 oz.
  • Item Noise Level (Max): 80
View other configurations.

Ejector Data Specifications

Ejector Specification Vane pump 1200/1600 60Hz
Air Consumption | Nl/s 0
Vacuum (Max) | -kPa 75
Frequency | Hz 60
Vacuum Flow at 0 -kPa | Nl/s 158.7
Vacuum Flow at 10 -kPa | Nl/s 141.7
Vacuum Flow at 20 -kPa | Nl/s 125
Vacuum Flow at 30 -kPa | Nl/s 106.9
Vacuum Flow at 40 -kPa | Nl/s 90.5
Vacuum Flow at 50 -kPa | Nl/s 73.4
Vacuum Flow at 60 -kPa | Nl/s 56.3
Vacuum Flow at 70 -kPa | Nl/s 38.9
Vacuum Flow at 75 -kPa | Nl/s 30.9
