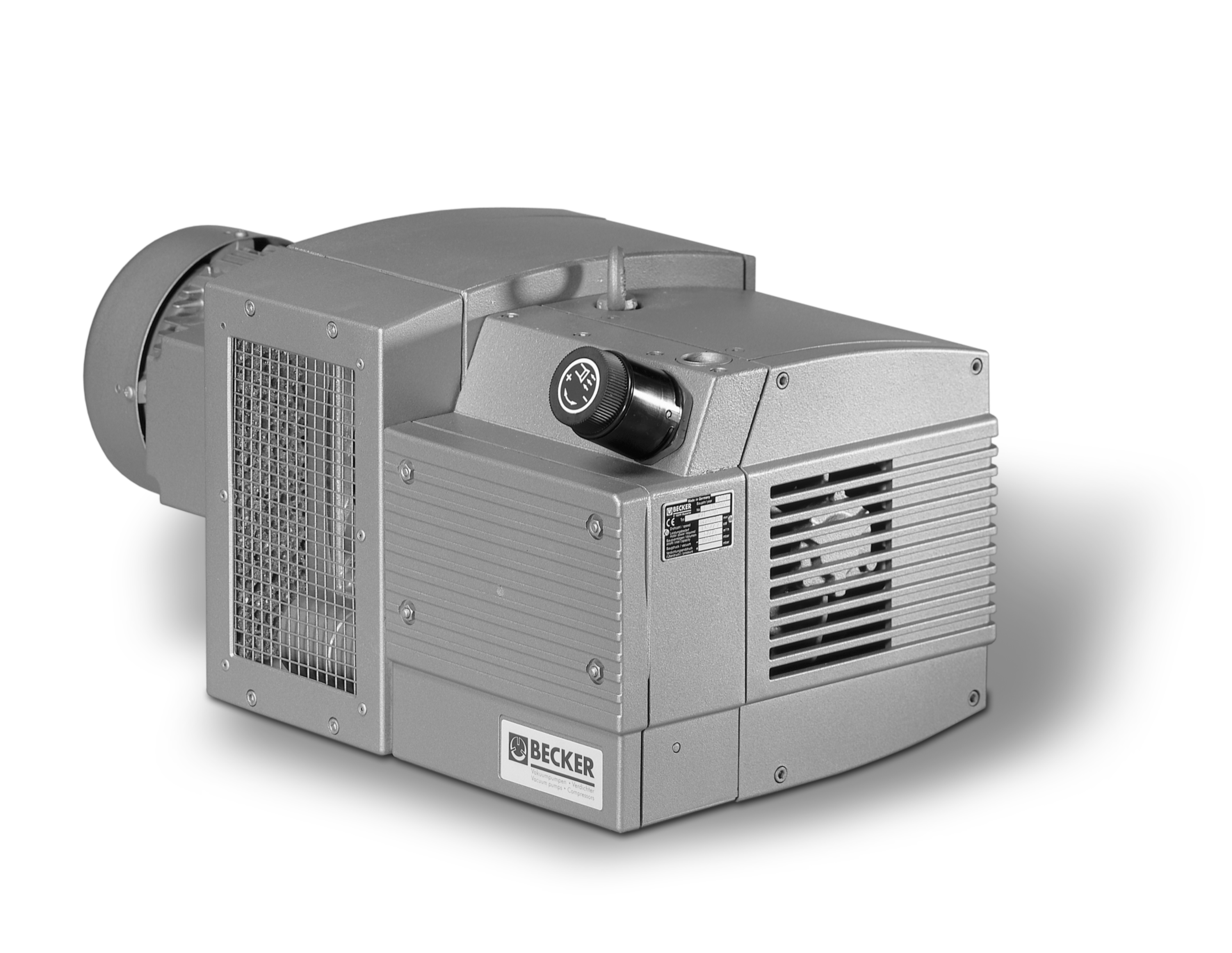

Piab 02.09.781 Vane pump 200 IE3 200V, 220V, 380V

Call for pricing
Part Numbers
  • 02.09.781
  • 0209781
Highlights...

Features

  • Electro mechanical generated vacuum
  • High vacuum flow
  • Integrated inlet filter and control valves
  • Oil-free
  • Vibration stable
  • Material: Iron FE
  • Weight (Max): 86000 oz.
  • Item Noise Level (Min): 72
  • Item Noise Level (Max): 75
View other configurations.

Ejector Data Specifications

Ejector Specification Vane pump 200 50Hz
Air Consumption | Nl/s 0
Vacuum (Max) | -kPa 90
Frequency | Hz 50
Vacuum Flow at 0 -kPa | Nl/s 18.6
Vacuum Flow at 10 -kPa | Nl/s 16.5
Vacuum Flow at 20 -kPa | Nl/s 14.5
Vacuum Flow at 30 -kPa | Nl/s 12.4
Vacuum Flow at 40 -kPa | Nl/s 10.3
Vacuum Flow at 50 -kPa | Nl/s 8.3
Vacuum Flow at 60 -kPa | Nl/s 6.2
Vacuum Flow at 70 -kPa | Nl/s 4.1
Vacuum Flow at 80 -kPa | Nl/s 2.1
Vacuum Flow at 90 -kPa | Nl/s 0
