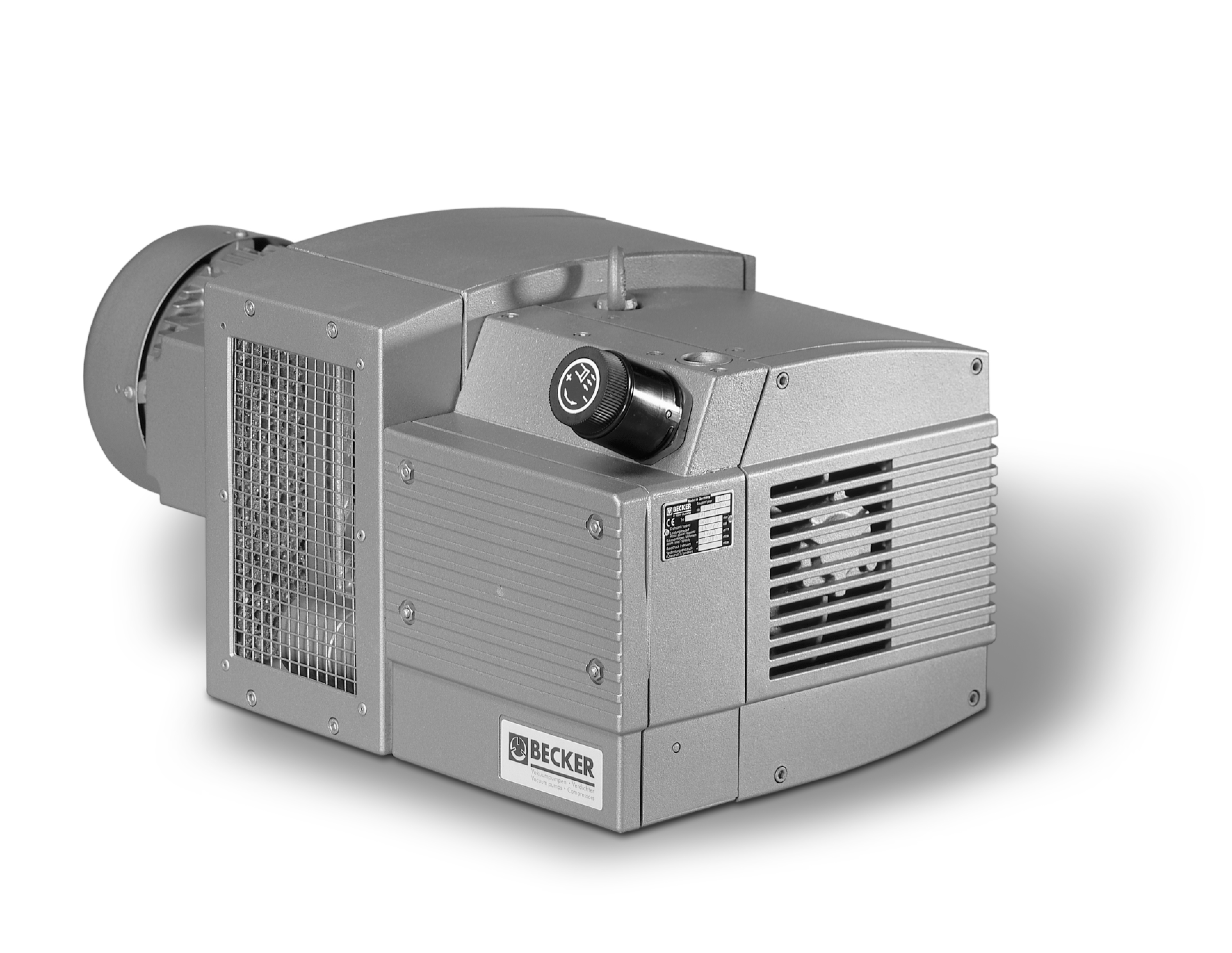

Piab 02.09.780 Vane pump 200 IE3 460V, 208V,230V

Call for pricing
Part Numbers
  • 02.09.780
  • 0209780
Highlights...

Features

  • Electro mechanical generated vacuum
  • High vacuum flow
  • Integrated inlet filter and control valves
  • Oil-free
  • Vibration stable
  • Material: Iron FE
  • Weight (Max): 86000 oz.
  • Item Noise Level (Max): 75
View other configurations.

Ejector Data Specifications

Ejector Specification Vane pump 200 60Hz
Air Consumption | Nl/s 0
Vacuum (Max) | -kPa 90
Frequency | Hz 60
Vacuum Flow at 0 -kPa | Nl/s 21.8
Vacuum Flow at 10 -kPa | Nl/s 19.4
Vacuum Flow at 20 -kPa | Nl/s 17
Vacuum Flow at 30 -kPa | Nl/s 14.5
Vacuum Flow at 40 -kPa | Nl/s 12.1
Vacuum Flow at 50 -kPa | Nl/s 9.7
Vacuum Flow at 60 -kPa | Nl/s 7.3
Vacuum Flow at 70 -kPa | Nl/s 4.8
Vacuum Flow at 80 -kPa | Nl/s 2.4
Vacuum Flow at 90 -kPa | Nl/s 0
