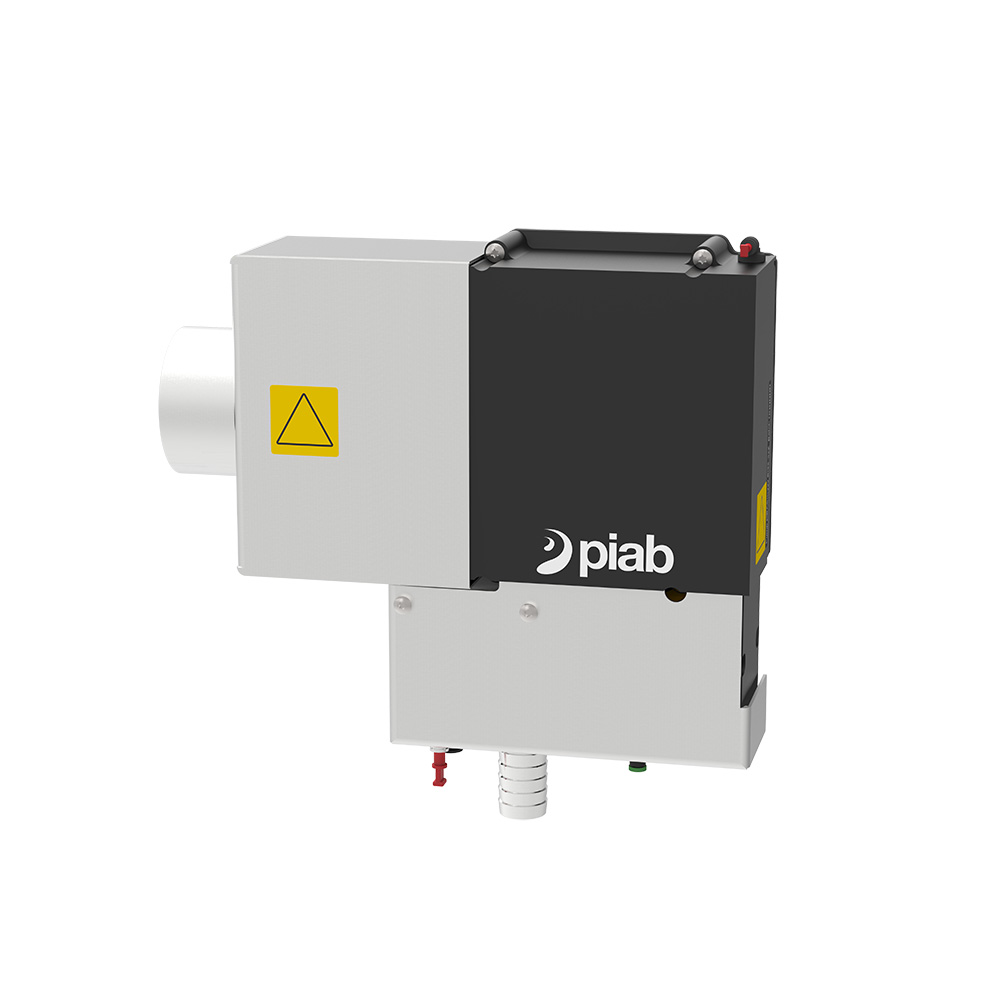

Piab 02.06.756

To optimize, upgrade or complete a conveyor, Piab offers also the vacuum pumps/generators as a stand alone.

Call for pricing
Part Numbers
  • 02.06.756
  • 0206756
Highlights...

Features

  • COAX® patented technology
  • Side mounted for low building heights
  • High vacuum flow
  • Compact size and low weight
  • Modular design
  • Material: Al;CuZn;NBR (FKM);PA;POM;SS;Zn;Cu
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Max): 69
  • Item Vacuum (Max): 65
  • Item Vacuum (Min): 75
View other configurations.

Ejector Data Specifications

Ejector Specification piBASIC100
Feed Pressure | MPa 0.4
Air Consumption | Nl/s 5
Vacuum (Max) | -kPa 60
Vacuum Flow at 0 -kPa | Nl/s 20
Vacuum Flow at 10 -kPa | Nl/s 11.6
Vacuum Flow at 20 -kPa | Nl/s 7.6
Vacuum Flow at 30 -kPa | Nl/s 4.8
Vacuum Flow at 40 -kPa | Nl/s 3.2
Vacuum Flow at 50 -kPa | Nl/s 1.6
Vacuum Flow at 60 -kPa | Nl/s 0.4
