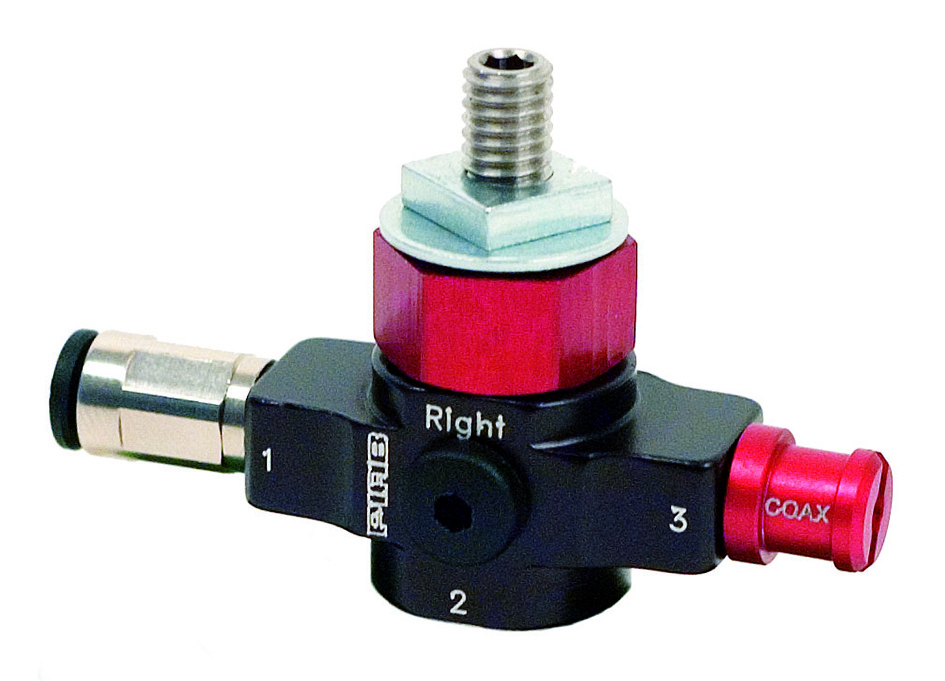

Piab VGS™2010_

Call for pricing
Part Numbers
  • VGS™2010_
  • VGS™2010_
Highlights...

Features

  • Patented COAX® technology.
  • Compatible with any suction cup with G1/8" male fitting. Suction cup ordered separately.
  • Available with a two-stage COAX® cartridge MICRO. Configurable to your specific needs. Choose Bi for low feed pressure, Si for high vacuum flow, Xi for extra vacuum and Ti at 0.4/0.6 MPa for extra capacity/dirt tolerance.
  • Material: Nitrile (NBR);Al;PA;SS;TPE
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 55
  • Item Noise Level (Max): 61

Ejector Data Specifications

Ejector Specification Bi03-2
Feed Pressure | MPa 0.18
Air Consumption | Nl/s 0.14
Vacuum (Max) | -kPa 83
Vacuum Flow at 0 -kPa | Nl/s 0.23
Vacuum Flow at 10 -kPa | Nl/s 0.15
Vacuum Flow at 20 -kPa | Nl/s 0.06
Vacuum Flow at 30 -kPa | Nl/s 0.04
Vacuum Flow at 40 -kPa | Nl/s 0.035
Vacuum Flow at 50 -kPa | Nl/s 0.023
Vacuum Flow at 60 -kPa | Nl/s 0.013
Vacuum Flow at 70 -kPa | Nl/s 0.006
Evacuation Time to Reach 10 -kPa | s/l 0.5
Evacuation Time to Reach 20 -kPa | s/l 1.4
Evacuation Time to Reach 30 -kPa | s/l 3.9
Evacuation Time to Reach 40 -kPa | s/l 6.4
Evacuation Time to Reach 50 -kPa | s/l 10
Evacuation Time to Reach 60 -kPa | s/l 16
Evacuation Time to Reach 70 -kPa | s/l 28
Evacuation Time to Reach 80 -kPa | s/l 51
