$123.36

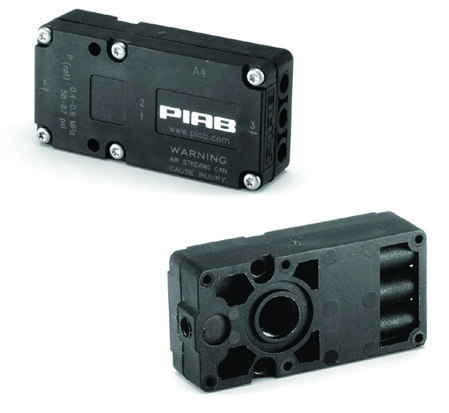

Part Numbers
- X10A5-CN
- 3222159/1
Highlights...
- X10A5-CN
- By Piab
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Extra vacuum level to 27.9 -inHg
- Small size and low weight
- Use in tightly sealed or non-porous applications
- Material: Nitrile (NBR);Ethylene Propylene (EPDM);ABS;PA;POM;SS;Viton®
- Item Feed Pressure (Max): 0.7
- Item Noise Level (Min): 62
- Item Noise Level (Max): 66
Description
Ejector Data Specifications
| Ejector Specification | X10L |
| Feed Pressure | MPa | 0.4 |
| Air Consumption | Nl/s | 0.79 |
| Vacuum (Max) | -kPa | 93 |
| Vacuum Flow at 0 -kPa | Nl/s | 0.76 |
| Vacuum Flow at 10 -kPa | Nl/s | 0.35 |
| Vacuum Flow at 20 -kPa | Nl/s | 0.24 |
| Vacuum Flow at 30 -kPa | Nl/s | 0.21 |
| Vacuum Flow at 40 -kPa | Nl/s | 0.16 |
| Vacuum Flow at 50 -kPa | Nl/s | 0.13 |
| Vacuum Flow at 60 -kPa | Nl/s | 0.1 |
| Vacuum Flow at 70 -kPa | Nl/s | 0.07 |
| Vacuum Flow at 80 -kPa | Nl/s | 0.04 |
| Vacuum Flow at 90 -kPa | Nl/s | 0.01 |
| Evacuation Time to Reach 10 -kPa | s/l | 0.11 |
| Evacuation Time to Reach 20 -kPa | s/l | 0.47 |
| Evacuation Time to Reach 30 -kPa | s/l | 0.94 |
| Evacuation Time to Reach 40 -kPa | s/l | 1.5 |
| Evacuation Time to Reach 50 -kPa | s/l | 2.2 |
| Evacuation Time to Reach 60 -kPa | s/l | 3.1 |
| Evacuation Time to Reach 70 -kPa | s/l | 4.3 |
| Evacuation Time to Reach 80 -kPa | s/l | 6.6 |
| Evacuation Time to Reach 90 -kPa | s/l | 14 |
