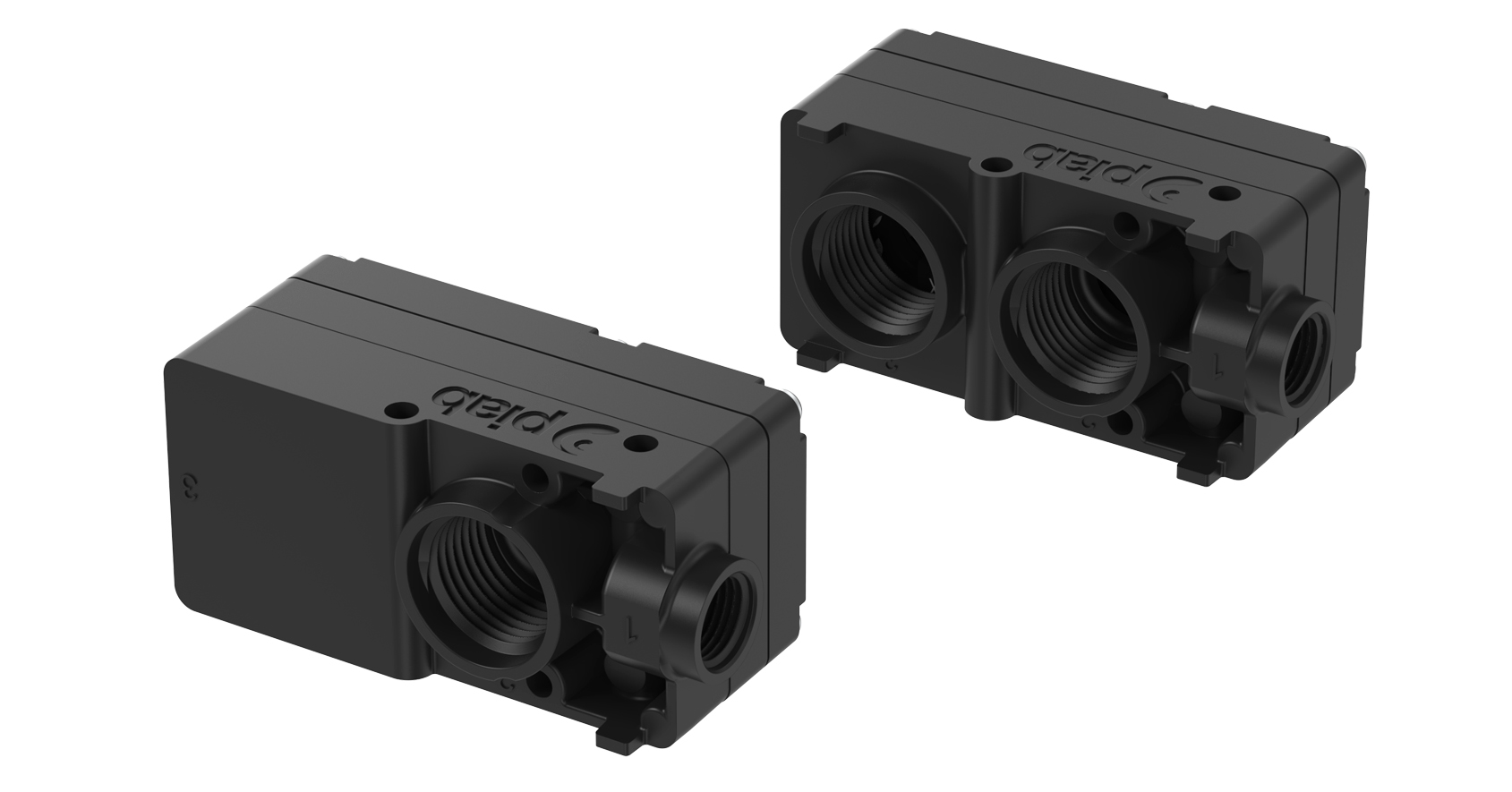

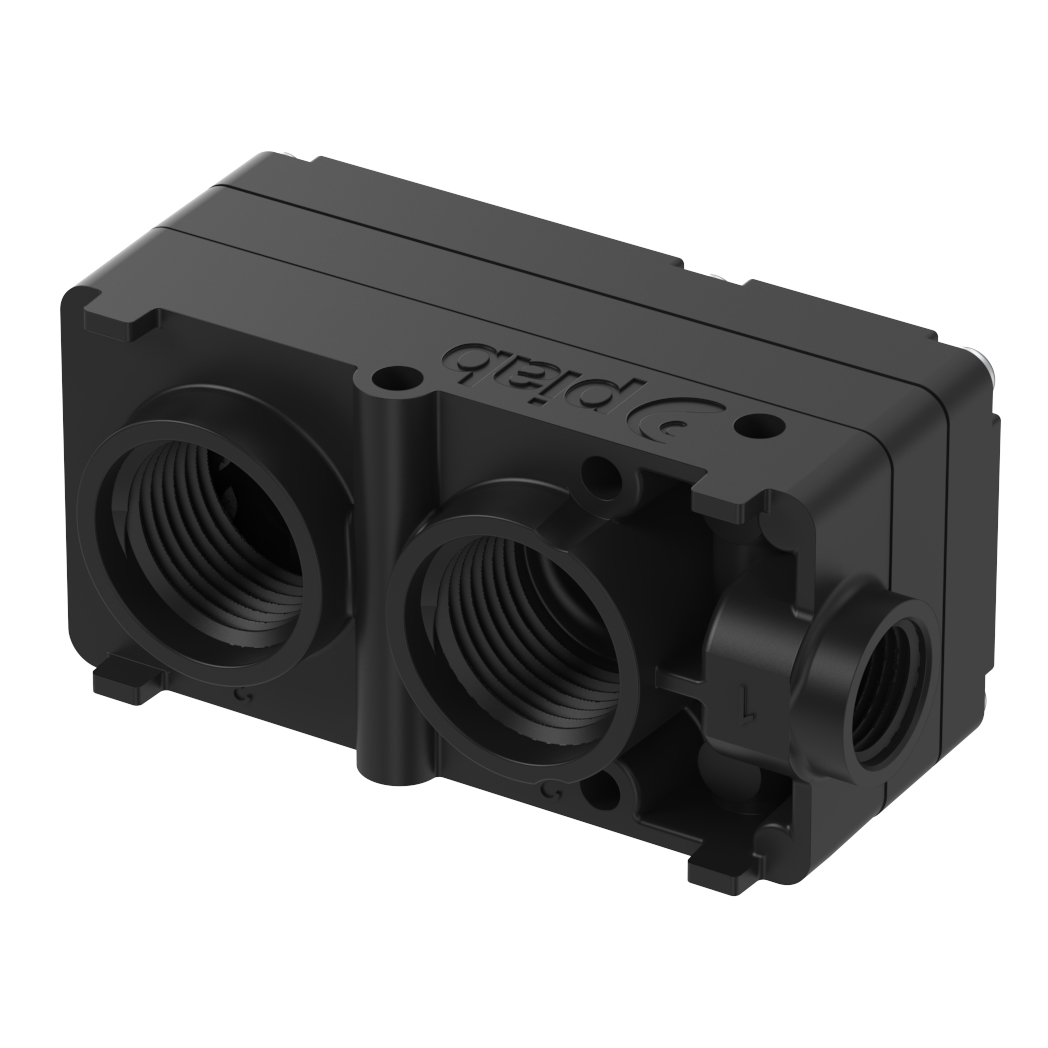

Piab X20A6-CN / 3222219 MINI X20, conn. C, NBR sealings, X20A6-CN

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab's multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and efficient vacuum system. The two-stage COAX® cartridge MICRO is probably the world's smallest multistage vacuum ejector. Its low weight makes it suitable to integrate close to the suction point in high speed pick-and-place applications of small objects. The two-stage COAX® cartridge MINI has small mounting dimensions and the three-stage COAX® cartridge MINI has high initial vacuum flow. The two-stage COAX® cartridge MIDI has small mounting dimensions and the three-stage COAX® cartridge MIDI has high initial vacuum flow. The MIDI cartridges are efficient generators of blow-air and are also suitable for fast evacuation of large volumes.

Ejector Data Specifications

Ejector Specification	X20
Feed Pressure | MPa	0.5
Air Consumption | Nl/s	1.44
Vacuum (Max) | -kPa	95
Vacuum Flow at 0 -kPa | Nl/s	2.05
Vacuum Flow at 10 -kPa | Nl/s	1.2
Vacuum Flow at 20 -kPa | Nl/s	0.58
Vacuum Flow at 30 -kPa | Nl/s	0.52
Vacuum Flow at 40 -kPa | Nl/s	0.45
Vacuum Flow at 50 -kPa | Nl/s	0.36
Vacuum Flow at 60 -kPa | Nl/s	0.29
Vacuum Flow at 70 -kPa | Nl/s	0.19
Vacuum Flow at 80 -kPa | Nl/s	0.08
Vacuum Flow at 90 -kPa | Nl/s	0.03
Evacuation Time to Reach 10 -kPa | s/l	0.062
Evacuation Time to Reach 20 -kPa | s/l	0.174
Evacuation Time to Reach 30 -kPa | s/l	0.356
Evacuation Time to Reach 40 -kPa | s/l	0.562
Evacuation Time to Reach 50 -kPa | s/l	0.809
Evacuation Time to Reach 60 -kPa | s/l	1.117
Evacuation Time to Reach 70 -kPa | s/l	1.533
Evacuation Time to Reach 80 -kPa | s/l	2.274
Evacuation Time to Reach 90 -kPa | s/l	4.092
