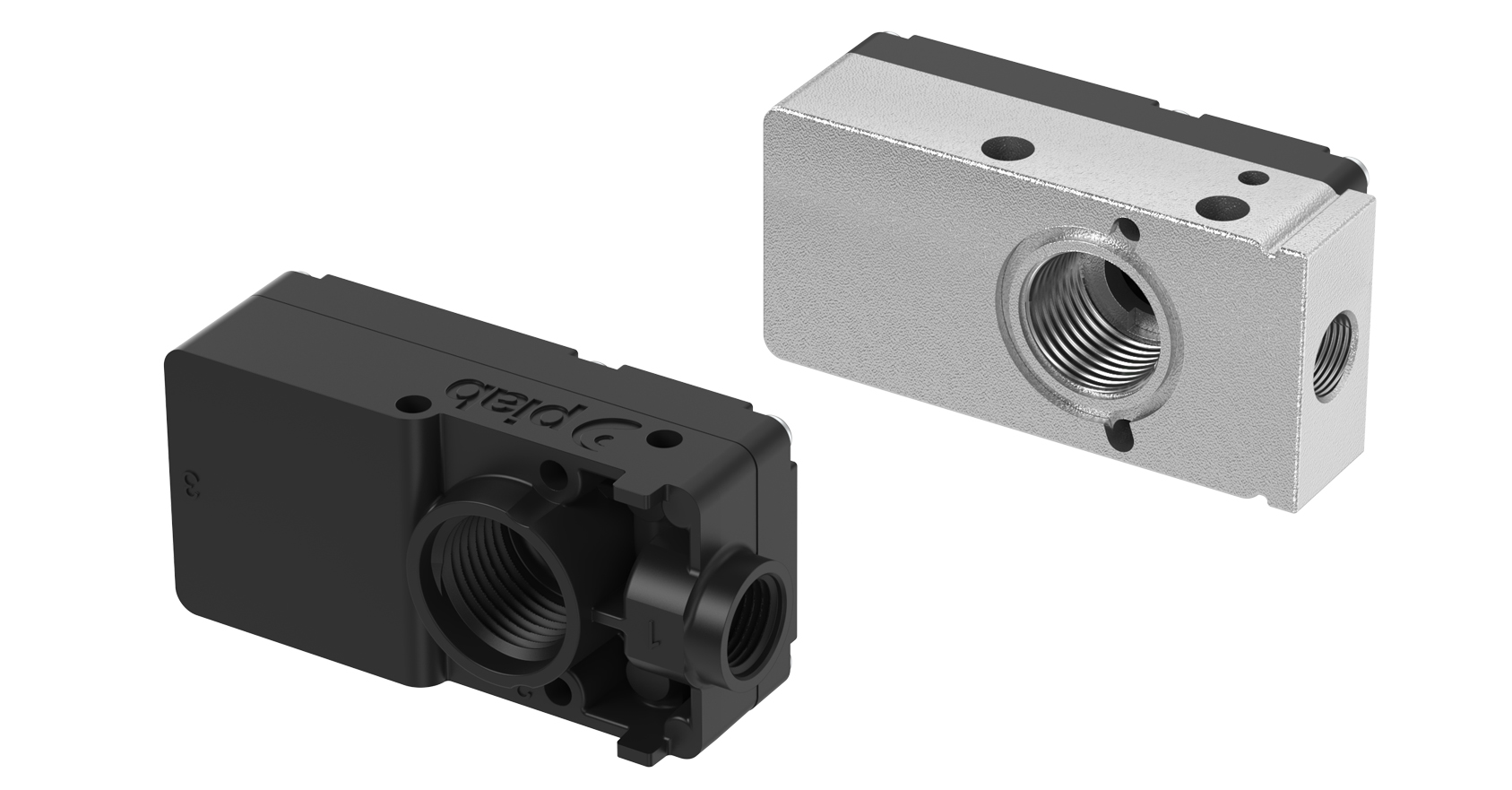

Piab M10A6-B1N / 0103189 MINI M10, conn. B1, NBR sealings, M10A6-B1N

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab's multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and efficient vacuum system. The two-stage COAX® cartridge MICRO is probably the world's smallest multistage vacuum ejector. Its low weight makes it suitable to integrate close to the suction point in high speed pick-and-place applications of small objects. The two-stage COAX® cartridge MINI has small mounting dimensions and the three-stage COAX® cartridge MINI has high initial vacuum flow. The two-stage COAX® cartridge MIDI has small mounting dimensions and the three-stage COAX® cartridge MIDI has high initial vacuum flow. The MIDI cartridges are efficient generators of blow-air and are also suitable for fast evacuation of large volumes.

Ejector Data Specifications

Ejector Specification	M10
Feed Pressure | MPa	0.6
Air Consumption | Nl/s	0.7
Vacuum (Max) | -kPa	84
Vacuum Flow at 0 -kPa | Nl/s	1.2
Vacuum Flow at 10 -kPa | Nl/s	0.8
Vacuum Flow at 20 -kPa | Nl/s	0.5
Vacuum Flow at 30 -kPa | Nl/s	0.44
Vacuum Flow at 40 -kPa | Nl/s	0.33
Vacuum Flow at 50 -kPa | Nl/s	0.26
Vacuum Flow at 60 -kPa | Nl/s	0.18
Vacuum Flow at 70 -kPa | Nl/s	0.08
Vacuum Flow at 80 -kPa | Nl/s	0.022
Evacuation Time to Reach 10 -kPa | s/l	0.1
Evacuation Time to Reach 20 -kPa | s/l	0.254
Evacuation Time to Reach 30 -kPa | s/l	0.467
Evacuation Time to Reach 40 -kPa | s/l	0.726
Evacuation Time to Reach 50 -kPa | s/l	1.065
Evacuation Time to Reach 60 -kPa | s/l	1.52
Evacuation Time to Reach 70 -kPa | s/l	2.289
Evacuation Time to Reach 80 -kPa | s/l	4.25
