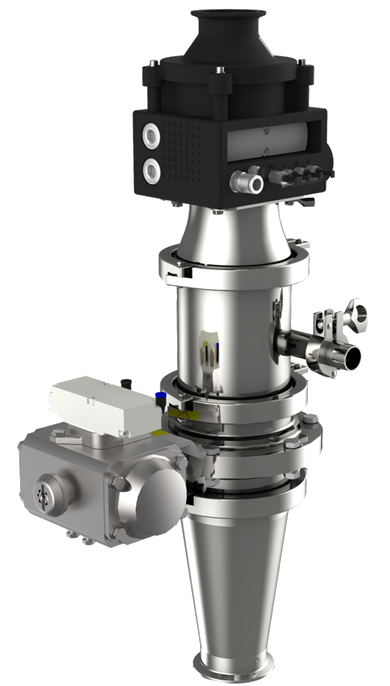

Piab 02.41.098 Vacuum conveyor piFLOW®am 100-SX-PNEU-0.5L Ø23 BF AL

Call for pricing
Part Numbers
  • 02.41.098
  • 0241098
Highlights...

Features

  • A premium steel grade vacuum conveyor, designed to meet the requirements of high-demanding applications in additive manufacturing and pharma industries.
  • Our COAX® Technology, the most energy efficient way to produce vacuum, is used in the pump.
  • Material in contact with the conveyed product is in compliance with FDA
  • Conveyor is CE approved
  • Steel quality ASTM 316L (stainless steel, acid resistant), mechanically polished.
  • Designed according to USDA guidelines.
  • Automatic filter cleaning.
  • Hygienic design making maintenance and cleaning simple.
  • Smooth installation and easy to use.
  • High throughput with a small footprint.
  • 0.5 liters per conveying cycle
  • Material: Nitrile (NBR);Ethylene Propylene (EPDM);Al;PA;SS;PTFE;ASTM 316L
  • Item Feed Pressure (Min): 0.4
  • Item Feed Pressure (Max): 0.6
  • Item Noise Level (Min): 69
  • Item Noise Level (Max): 73
  • Item Vacuum (Max): 56
  • Item Vacuum (Min): 41
View other configurations.
Piab conveyors specifically developed for additive manufacturing applications are designed with a stainless-steel body (ASTM 316L) and a butterfly valve. These conveyors have a standard TC-coupling for easy integration and designed to take up minimal amount of space. Typical applications are metal powder transfer to or from a hopper or a sieve, feeding a 3D printer or recirculating material from the overflow bin.
