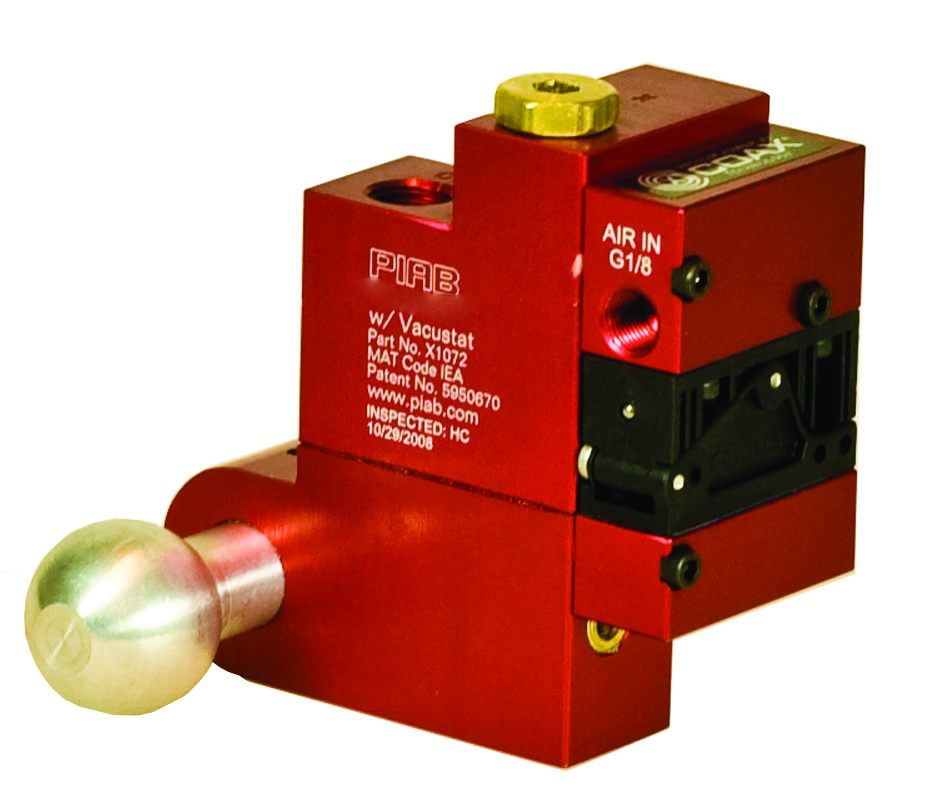

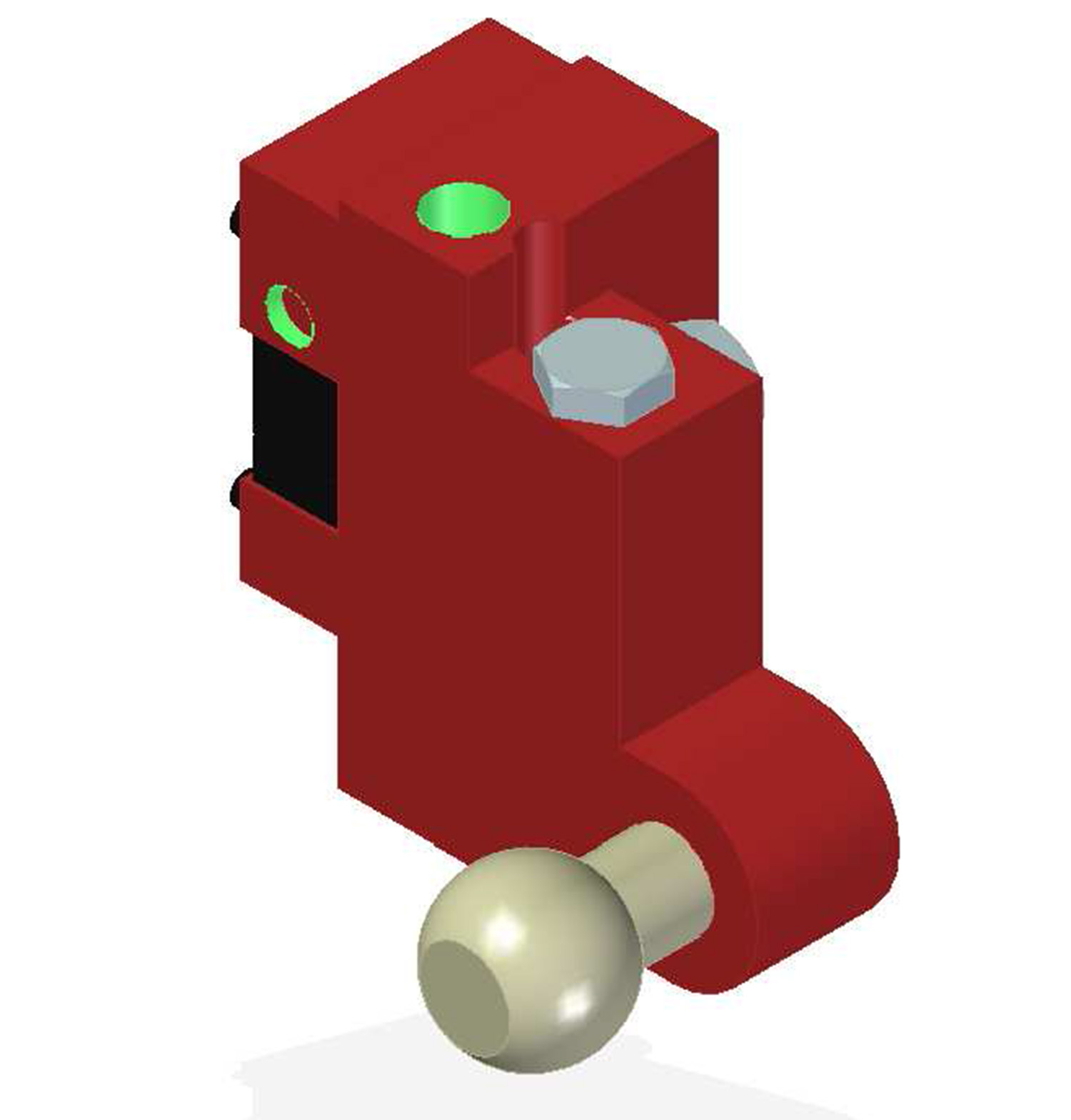

Piab 1072RH / 0127837

Features

• Two-stage COAX® cartridge MINI Pi12-2 integrated.
• Check valve that traps vacuum in sealed applications for safe operation.
• Built-in blow off check valve for fast release of object.
• Integrated energy-saving device, Vacustat results in virtually no air consumption in sealed applications.
• Available in lock pin 16, 19 or ball joint mountings, industry standard.
• Available with level compensator to compensate for differences in level of object.
• Recommend using 4mm (5/32”) tubing and no more than 80 psi for blow off.
• Recommend using 6mm (1/4”) tubing and no more than 80 psi for vacuum.
• Equal line lengths from common manifold should be used for both blow-off and vacuum.
• Maximum of (12) units per tool.
• Material: Nitrile (NBR);Al;CuZn;PA;PP;SS;Steel;Ceramic
• Weight (Max): 602 oz.
• Item Feed Pressure (Min): 0.25
• Item Feed Pressure (Max): 0.55
• Item Noise Level (Min): 66
• Item Noise Level (Max): 68
