Call for pricing
Part Numbers

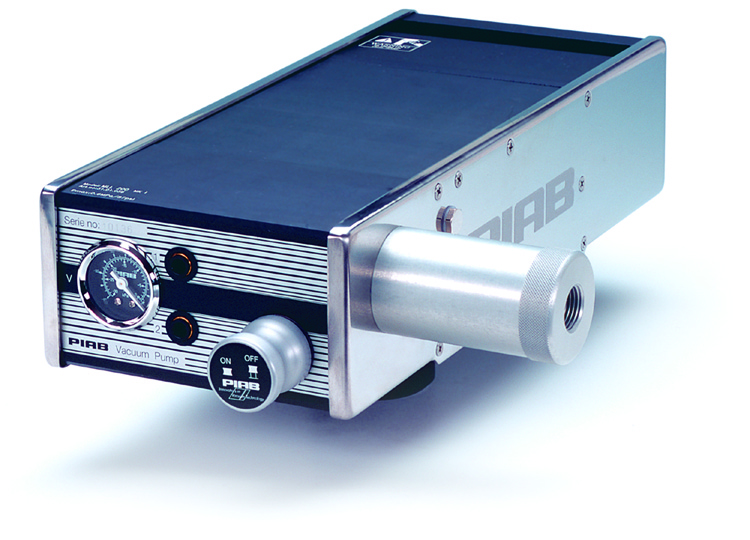

- MLL400ES
- 0100742U
Highlights...
- MLL400ES
- By Piab
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Largest compressed air driven pump on the market
- Energy-saving (ES) available
- Material: Nitrile (NBR);Al;SS;PPS
- Item Feed Pressure (Max): 0.7
- Item Noise Level (Min): 72
- Item Noise Level (Max): 76
Description
Ejector Data Specifications
| Ejector Specification | MLL400 |
| Feed Pressure | MPa | 0.6 |
| Air Consumption | Nl/s | 28 |
| Vacuum (Max) | -kPa | 91 |
| Vacuum Flow at 0 -kPa | Nl/s | 92 |
| Vacuum Flow at 10 -kPa | Nl/s | 52 |
| Vacuum Flow at 20 -kPa | Nl/s | 35 |
| Vacuum Flow at 30 -kPa | Nl/s | 18.4 |
| Vacuum Flow at 40 -kPa | Nl/s | 9.2 |
| Vacuum Flow at 50 -kPa | Nl/s | 6.4 |
| Vacuum Flow at 60 -kPa | Nl/s | 4.6 |
| Vacuum Flow at 70 -kPa | Nl/s | 2.2 |
| Vacuum Flow at 80 -kPa | Nl/s | 0.92 |
| Vacuum Flow at 90 -kPa | Nl/s | 0.02 |
| Evacuation Time to Reach 10 -kPa | s/l | 0.0015 |
| Evacuation Time to Reach 20 -kPa | s/l | 0.004 |
| Evacuation Time to Reach 30 -kPa | s/l | 0.007 |
| Evacuation Time to Reach 40 -kPa | s/l | 0.015 |
| Evacuation Time to Reach 50 -kPa | s/l | 0.03 |
| Evacuation Time to Reach 60 -kPa | s/l | 0.05 |
| Evacuation Time to Reach 70 -kPa | s/l | 0.08 |
| Evacuation Time to Reach 80 -kPa | s/l | 0.15 |
| Evacuation Time to Reach 90 -kPa | s/l | 0.41 |
