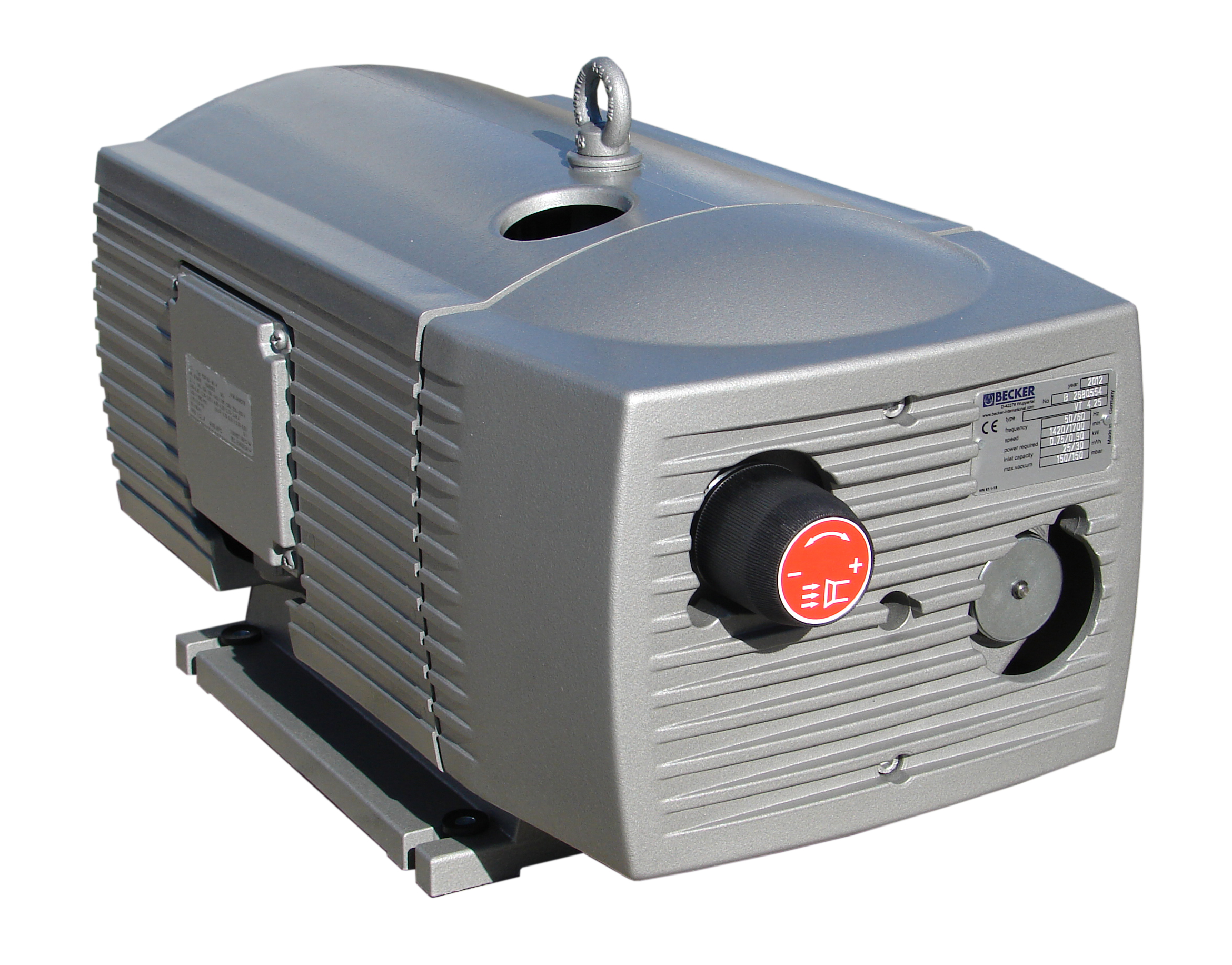

Piab 02.05.850

Call for pricing
Part Numbers
  • 02.05.850
  • 0205850
Highlights...

Features

  • Electro mechanical generated vacuum
  • High vacuum flow
  • Integrated inlet filter and control valves
  • Oil-free
  • Vibration stable
  • Material: Iron FE
  • Weight (Max): 38500 oz.
  • Item Noise Level (Min): 67
  • Item Noise Level (Max): 72

Ejector Data Specifications

Ejector Specification Vane pump 100 50Hz
Air Consumption | Nl/s 0
Vacuum (Max) | -kPa 85
Frequency | Hz 50
Vacuum Flow at 0 -kPa | Nl/s 11.1
Vacuum Flow at 10 -kPa | Nl/s 9.8
Vacuum Flow at 20 -kPa | Nl/s 8.5
Vacuum Flow at 30 -kPa | Nl/s 7.2
Vacuum Flow at 40 -kPa | Nl/s 5.8
Vacuum Flow at 50 -kPa | Nl/s 4.5
Vacuum Flow at 60 -kPa | Nl/s 3.2
Vacuum Flow at 70 -kPa | Nl/s 2
Vacuum Flow at 80 -kPa | Nl/s 0.6
Vacuum Flow at 90 -kPa | Nl/s 0
