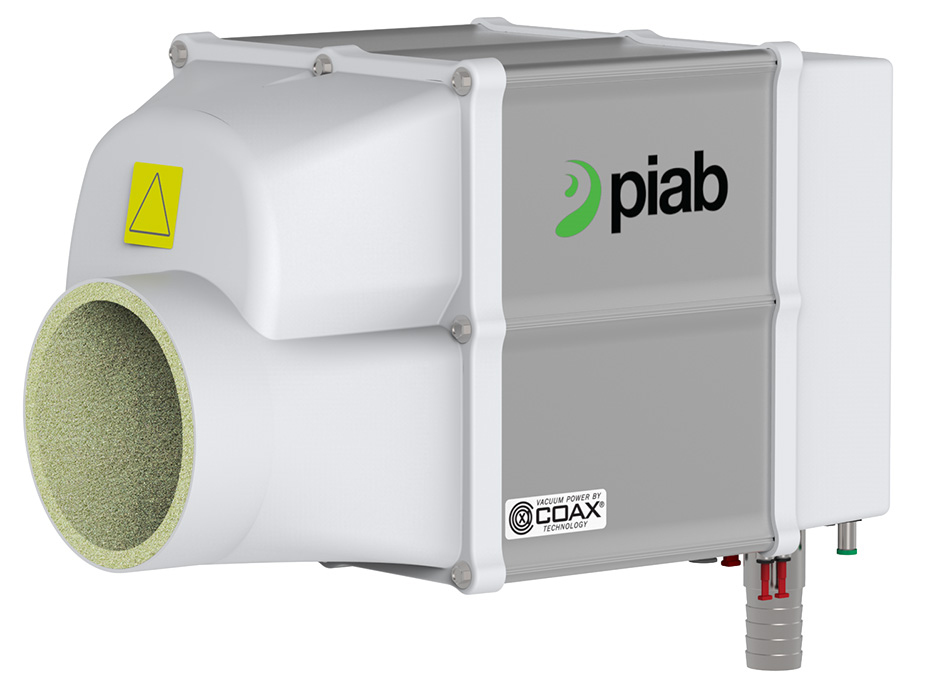

Piab 02.01.816 Pump piPREMIUM1600 Si32-3x64

Call for pricing
Part Numbers
  • 02.01.816
  • 0201816
Highlights...

Features

  • COAX® patented technology
  • Side mounted for low building heights
  • High vacuum flow
  • Compact size and low weight
  • Low noise level
  • Modular design
  • Material: Nitrile (NBR);Al;PA;PP;SS
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 69
  • Item Noise Level (Max): 77
  • Item Vacuum (Max): 75
  • Item Vacuum (Min): 60
View other configurations.

Ejector Data Specifications

Ejector Specification piPREMIUM1600
Feed Pressure | MPa 0.4
Air Consumption | Nl/s 80
Vacuum (Max) | -kPa 60
Vacuum Flow at 0 -kPa | Nl/s 314
Vacuum Flow at 10 -kPa | Nl/s 174
Vacuum Flow at 20 -kPa | Nl/s 122
Vacuum Flow at 30 -kPa | Nl/s 77
Vacuum Flow at 40 -kPa | Nl/s 51
Vacuum Flow at 50 -kPa | Nl/s 26
Vacuum Flow at 60 -kPa | Nl/s 6.4
