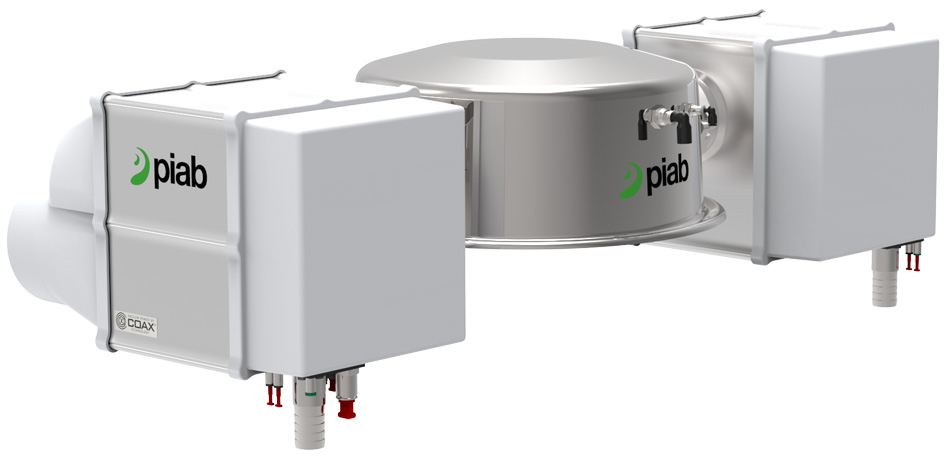

Piab 02.01.126 piPREMIUM upgrade kit C33-1200

Call for pricing
Part Numbers
  • 02.01.126
  • 0201126
Highlights...

Features

  • The kit is a plug-and–play assembly for a quick changeover to replace the Maxi L pump and top module
  • COAX® patented technology
  • Side mounted for low building height
  • High vacuum flow
  • Compact size and low weight
  • Low noise level
  • Modular design
  • Pneumatic valve for compressed air to shock tank and mounting plate for the C series are included
  • Material: Nitrile (NBR);Al;PA;PP;SS;ASTM 316L
  • Item Feed Pressure (Max): 0.7
  • Item Noise Level (Min): 69
  • Item Noise Level (Max): 77
  • Item Vacuum (Max): 75
  • Item Vacuum (Min): 60

Ejector Data Specifications

Ejector Specification piPREMIUM1200
Feed Pressure | MPa 0.4
Air Consumption | Nl/s 60
Vacuum (Max) | -kPa 60
Vacuum Flow at 0 -kPa | Nl/s 240
Vacuum Flow at 10 -kPa | Nl/s 139
Vacuum Flow at 20 -kPa | Nl/s 91
Vacuum Flow at 30 -kPa | Nl/s 58
Vacuum Flow at 40 -kPa | Nl/s 38
Vacuum Flow at 50 -kPa | Nl/s 19.2
Vacuum Flow at 60 -kPa | Nl/s 4.8
