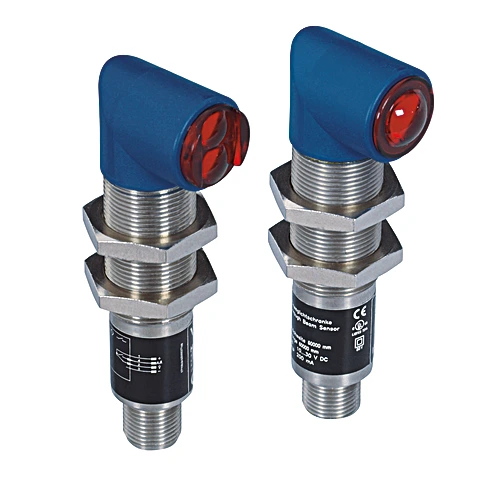

Wenglor ZW200PCT3 Through-Beam Sensor

Features

• Smallest recognizable part: 0,25 mm
• Time delay
• Teach-in, external teach-in
• Range: 20,000 mm

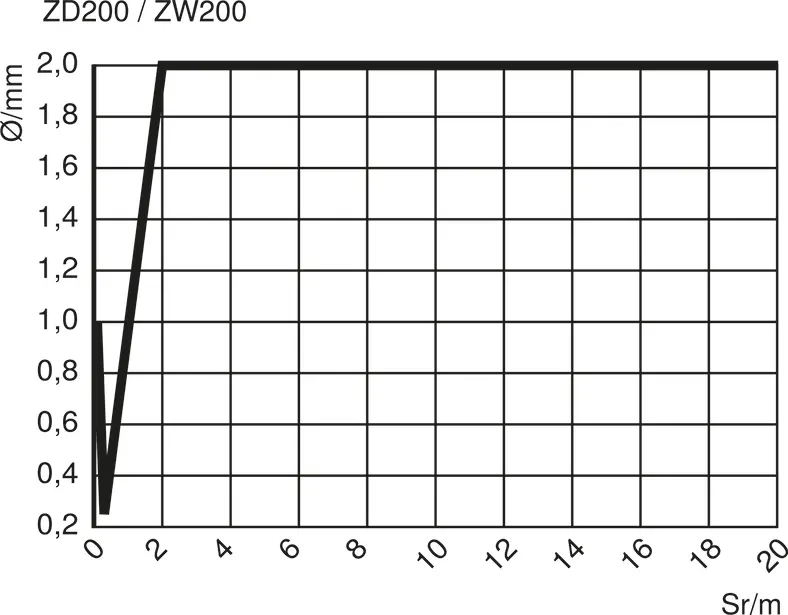

• Smallest Recognizable Part: 250 µm
• Switching Hysteresis: < 15 %
• Light Source: Laser (red)
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 12 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 15 mA
• Switching Frequency: 3 kHz
• Response Time: 166 µs
• On-/Off-Delay (RS-232): 0 to 5 s
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Teach Mode: NT, MT
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Stainless steel, V2A (1.4305/303), Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67

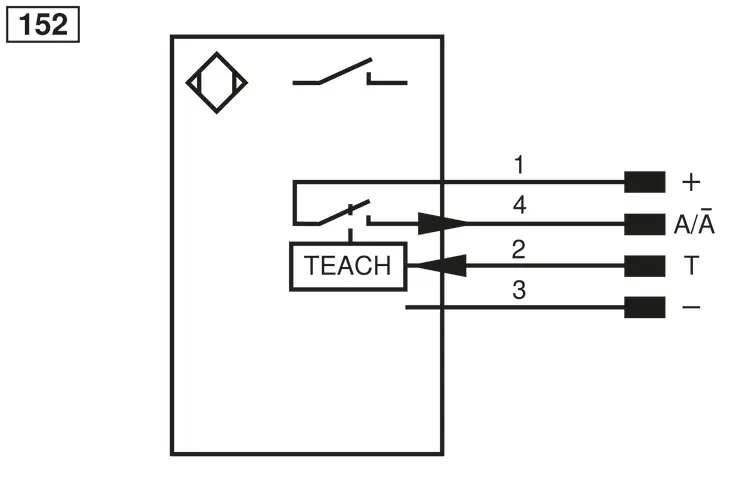

• Connection: M12 × 1; 4-pin
• Weight: 40 g
• MTTFd (EN ISO 13849-1): 2,385.27 a
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
• PNP NC: yes
• RS-232 with Adapterbox: yes
• External teach-in input: yes
• Circuit: NC, NC/NO, NO
• Complementary Products: Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M, Software
