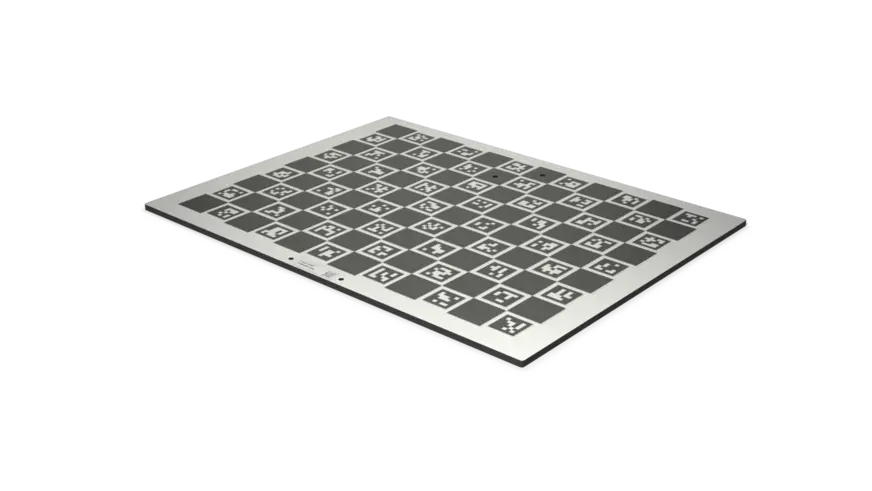

Wenglor ZVZJ007 Calibration Plate 270 × 360 mm, carbon

Calibration Plate 270 × 360 mm, carbon.

$1,484.00
Part Number
  • ZVZJ007
Highlights...

Features

  • uniVision incompatible
  • Accuracy total: ± 40 µm
  • Accuracy per element: ± 10 µm
  • Material: Carbon
  • Weight: 750 g
  • Coating: Ink
  • Cleaning: With alcohol and microfiber cloth
A calibration plate (SmartGrid) allows for easy and fast calibration in RobotVision applications. Calibration involves coordinate matching, eliminating the distortion caused by the optics. For precise calibration, the calibration plate should be completely in the camera's visual field and cover at least half of the visual field. Paper-printed calibration patterns result in inaccurate calibration. Opaque plates are suitable for incident light applications.
