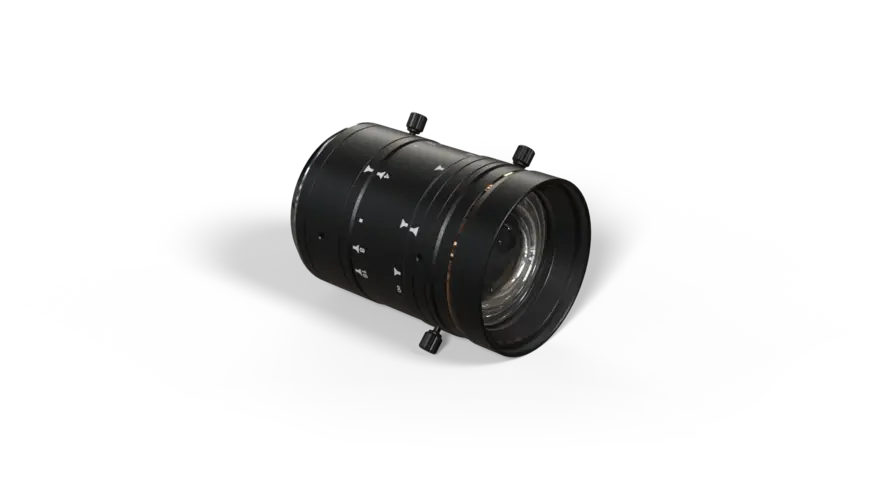

Wenglor ZVZG304 High-Resolution Lens for machine vision camera

High-Resolution Lens for machine vision camera.

$1,248.00
Part Number
  • ZVZG304
Highlights...

Features

  • Fixed focal length lens with C mount threaded connection
  • For image chips with small pixel sizes
  • Adjustable aperture and focus
  • Resistant to vibrations and shock
  • Focal distance: 50 mm
  • Maximum sensor size: 1,2''
  • Minimum pixel size: 2.74 µm
  • Wavelength spectrum: Visible light
  • Lens thread: C-Mount
  • Housing Material: Aluminum, anodised, Plastic, PET, Plastic, PS
  • Optic Cover: Glass
  • Aperture: arrestable, adjustable
  • Setting range aperture: F 2,4 to 16
  • Minimum object distance: 250 mm
  • Filter Screw Size: M40.5 × 0.5 mm
  • Temperature Range: 14°F to 122°F
  • Weight: 180 g
  • Packaging unit: 1 Piece
  • Working Distance: 200 mm, 400 mm, 600 mm
  • Visual Field: 34 x 25 mm, 79 x 58 mm, 123 x 90 mm
  • Complementary Products: Allen Key with Threaded Pins Z0070
High-resolution, fixed focal length lenses with C mount threaded connection can be used, for example, on Machine Vision Cameras with C mount connection. They're especially well-suited for image chips with minimal pixel sizes. Adjustable aperature values and adjustable focus offer the greatest possible variability for perfect image recordings.
