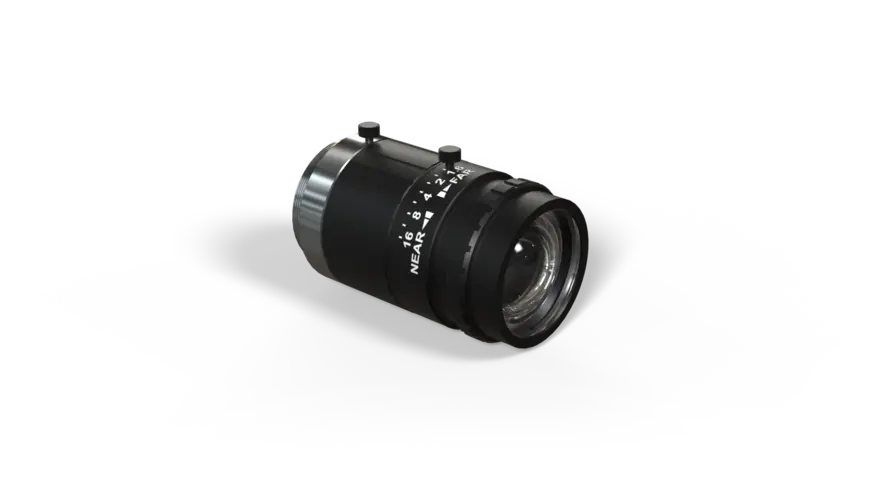

Wenglor ZVZG002 High-Resolution Lens for machine vision camera

High-Resolution Lens for machine vision camera.

$704.00
Part Number
  • ZVZG002
Highlights...

Features

  • Adjustable aperture
  • Adjustable focus
  • Fixed focal length lens with C mount threaded connection
  • For image chips with small pixel sizes of 3.45 × 3.45 µm
  • Focal distance: 25 mm
  • Maximum sensor size: 1/1,2
  • Minimum pixel size: 3.45 µm
  • Lens thread: C-Mount
  • Housing Material: Aluminum, anodised, Plastic, PET, Plastic, PS
  • Optic Cover: Glass
  • Aperture: arrestable, adjustable
  • Setting range aperture: F 1,6 to 16
  • Minimum object distance: 100 mm
  • Filter Screw Size: M25.5 × 0.5 mm
  • Temperature Range: 14°F to 122°F
  • Weight: 91 g
  • Packaging unit: 1 Piece
  • Working Distance: 100 mm, 200 mm, 600 mm
  • Visual Field: 15 × 11 mm, 35 × 26 mm, 115 × 86 mm
  • Complementary Products: Allen Key with Threaded Pins Z0070, ZBVG protective tube
High-resolution, fixed focal length lenses with C mount threaded connection can be used, for example, on Machine Vision Cameras with C mount connection. They're especially well-suited for image chips with minimal pixel sizes. Adjustable aperature values and adjustable focus offer the greatest possible variability for perfect image recordings.
