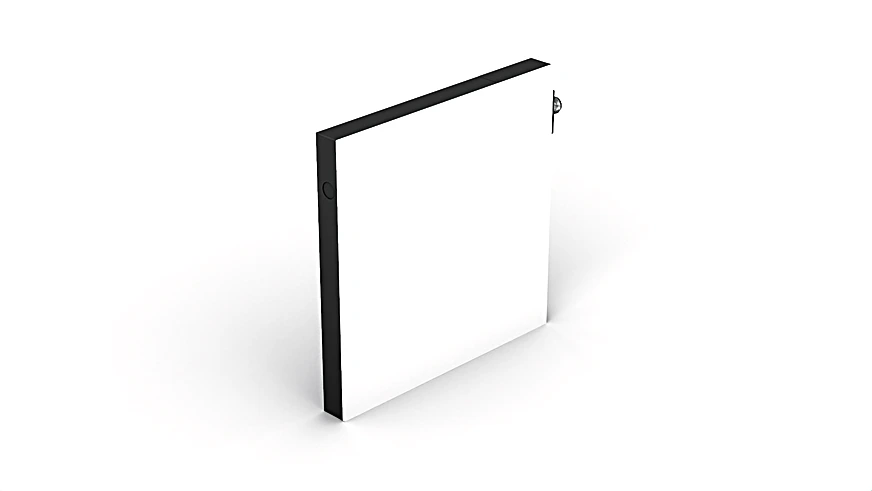

Wenglor ZVZF402 Flat Light infrared, 188 × 188 mm

Flat Light infrared, 188 × 188 mm.

$2,449.00
Part Number
  • ZVZF402
Highlights...

Features

  • Continuous mode or strobe mode synchronized with the camera
  • Diffuse light for transmitted light and incident light applications
  • Rugged housing (IP67) with minimal thickness and narrow edge
  • Light Source: Infrared Light
  • Wavelength: 850 nm
  • Service Life (T = 77°F): 100,000 h
  • Luminance (Continuous Mode): ~ 1.32 W/m²sr
  • Luminance (Flash Mode): ~ 7.7 W/m²sr
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current consumption flash mode OverDrive (operating voltage = 24 V): < 4,800 mA
  • Current Consumption Continuous Mode (Ub = 24 V): < 940 mA
  • Flash duration (max.): 17 to 30,000 µs
  • Duty cycle (max.): < 0,2
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

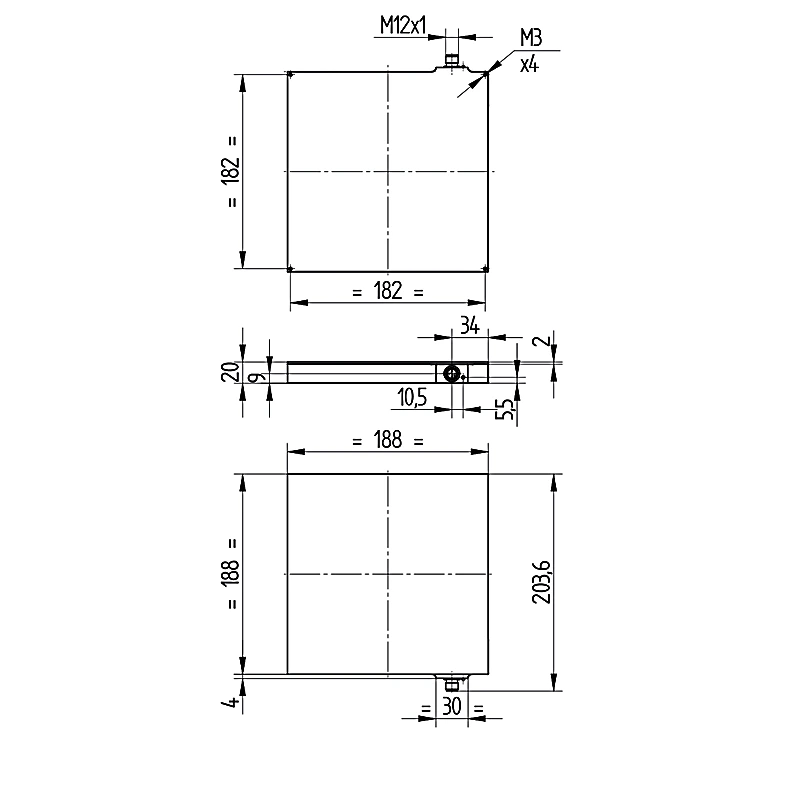

  • Luminous Field Length (L): 180 mm
  • Luminous Field: 180 × 180 mm
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67

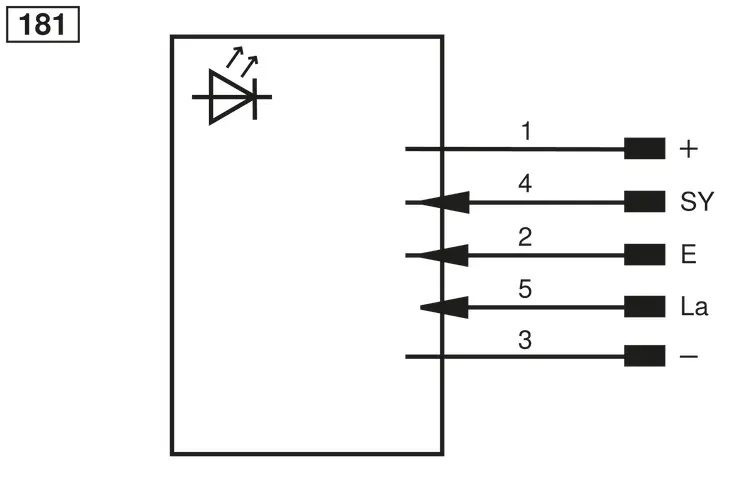

  • Connection: M12 × 1; 5-pin
  • Weight: 750 g
  • MTTFd (EN ISO 13849-1): 102.74 a
  • Complementary Products: ZC4G002 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

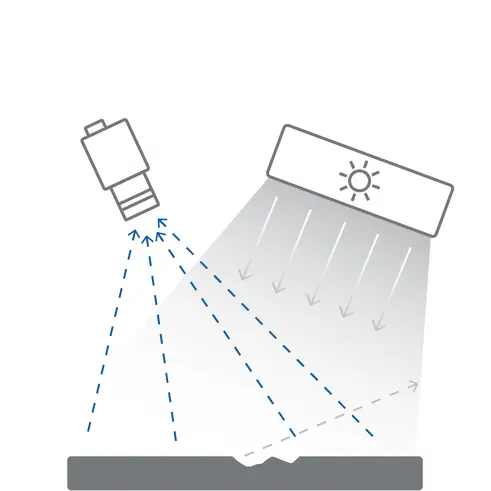

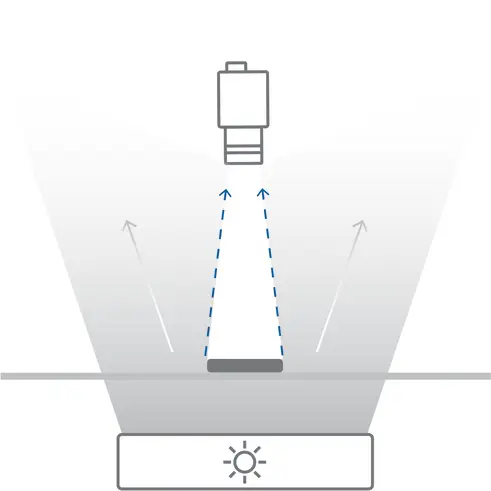

wenglor backlights are ideally suited for vision applications in which large areas need to be illuminated. They can be operated in continuous mode, or synchronized to the Machine Vision Camera in flash mode. Thanks to their diffuse light, the backlights are ideal for applications with transmitted light or incident light. Above all in systems where space is limited, users profit from the rugged housing (IP67) with minimal thickness and narrow framing, and at the same time from the large illuminated surface area.
