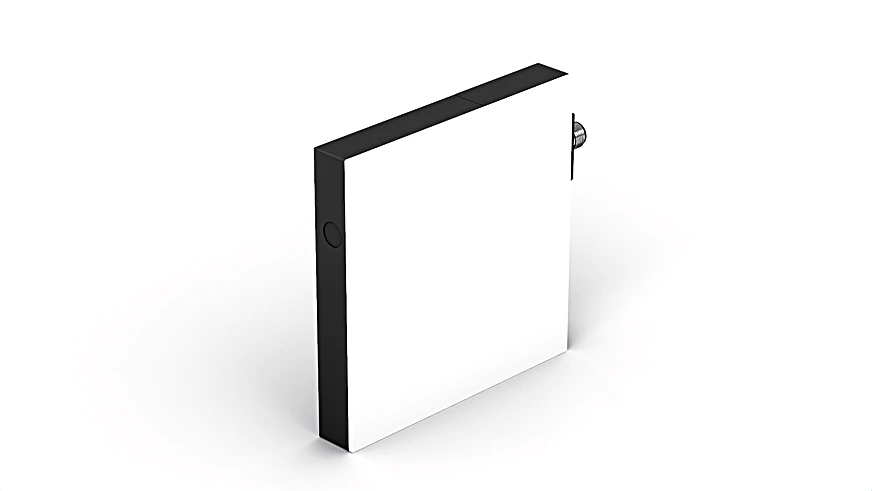

Wenglor ZVZF301 Flat Light white light, 128 × 128 mm

Flat Light white light, 128 × 128 mm.

$1,531.00
Part Number
  • ZVZF301
Highlights...

Features

  • Continuous mode or strobe mode synchronized with the camera
  • Diffuse light for transmitted light and incident light applications
  • Rugged housing (IP67) with minimal thickness and narrow edge
  • Light Source: White Light
  • Color temperature: 5,000 K
  • Service Life (T = 77°F): 100,000 h
  • Luminance (Continuous Mode): 7,400 cd/m²
  • Luminance (Flash Mode): 31,000 cd/m²
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current consumption flash mode OverDrive (operating voltage = 24 V): < 2,200 mA
  • Current Consumption Continuous Mode (Ub = 24 V): < 400 mA
  • Flash duration (max.): 17 to 30,000 µs
  • Duty cycle (max.): < 0,2
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

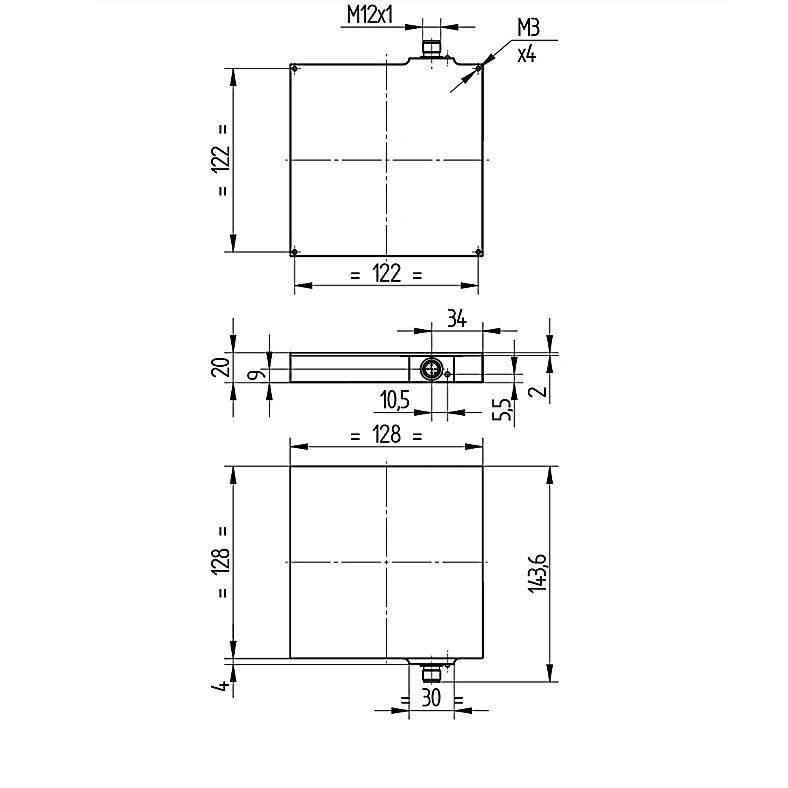

  • Luminous Field Length (L): 120 mm
  • Luminous Field: 120 × 120 mm
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67
  • UL Enclosure Type: 1

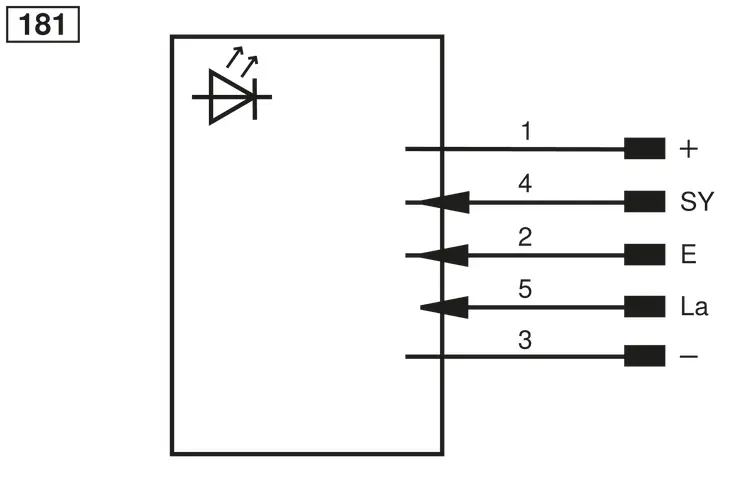

  • Connection: M12 × 1; 5-pin
  • Weight: 671 g
  • MTTFd (EN ISO 13849-1): 196.39 a
  • Complementary Products: ZC4G002 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

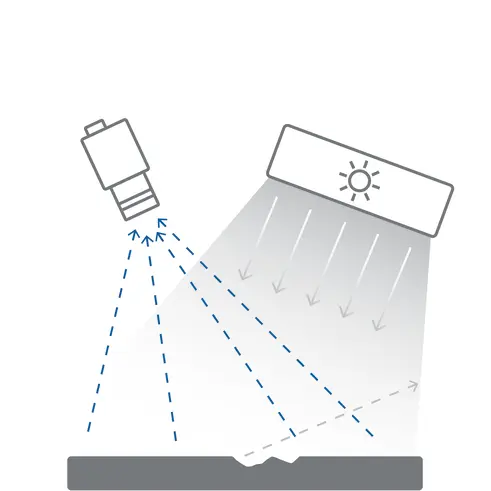

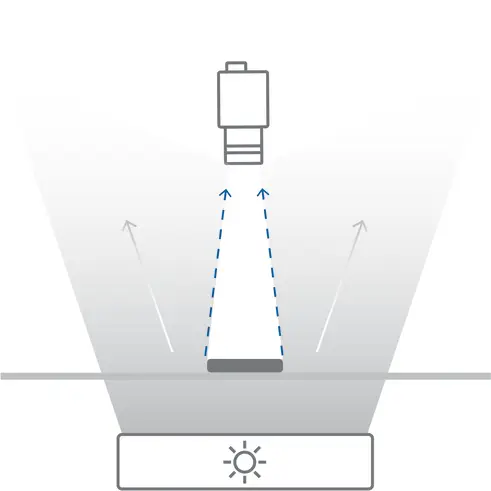

wenglor backlights are ideally suited for vision applications in which large areas need to be illuminated. They can be operated in continuous mode, or synchronized to the Machine Vision Camera in flash mode. Thanks to their diffuse light, the backlights are ideal for applications with transmitted light or incident light. Above all in systems where space is limited, users profit from the rugged housing (IP67) with minimal thickness and narrow framing, and at the same time from the large illuminated surface area.
