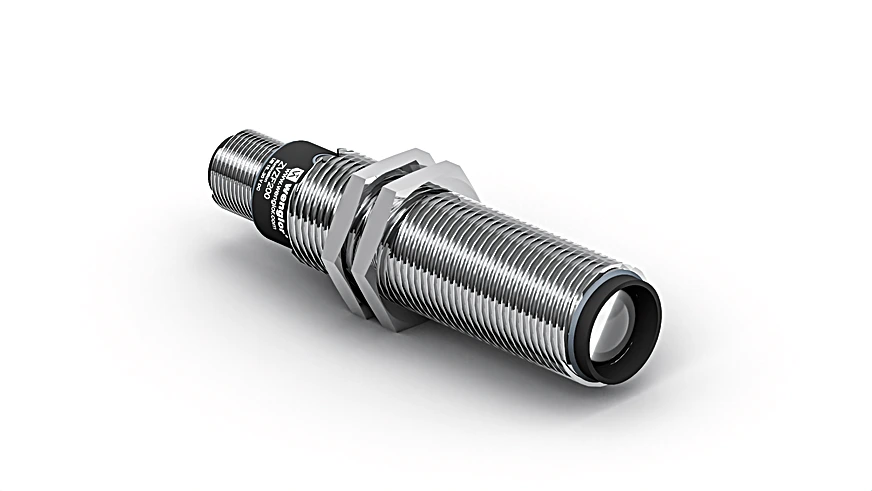

Wenglor ZVZF202 Spot Light infrared

Spot Light infrared.

$539.00
Part Number
  • ZVZF202
Highlights...

Features

  • Continuous mode or strobe mode synchronized with the camera
  • Homogeneous illumination of small areas
  • Compact M18 standard design with IP67 degree of protection
  • Light Source: Infrared Light
  • Wavelength: 850 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 2
  • Opening Angle: 30 °
  • Temperature Range: -22°F to 122°F
  • Storage temperature: -22°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current consumption flash mode OverDrive (operating voltage = 24 V): < 350 mA
  • Current Consumption Continuous Mode (Ub = 24 V): < 120 mA
  • Flash duration (max.): 17 to 30,000 µs
  • Duty cycle (max.): < 0,2
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Optic Cover: Glass
  • Degree of Protection: IP67
  • UL Enclosure Type: 1

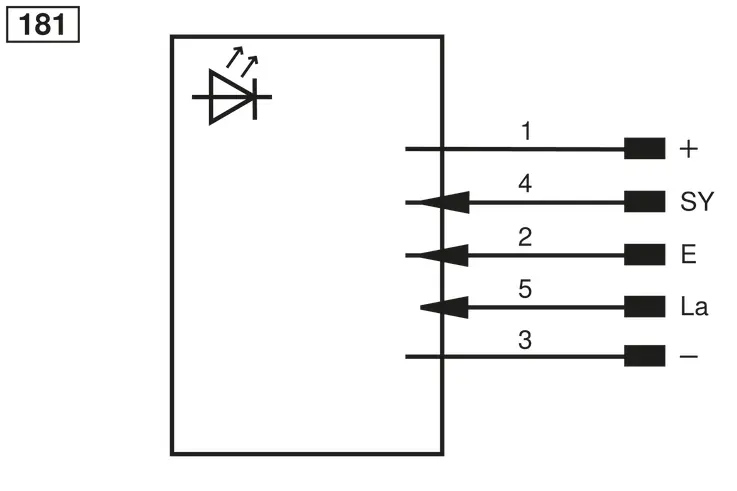

  • Connection: M12 × 1; 5-pin
  • Weight: 85 g
  • MTTFd (EN ISO 13849-1): 2,518.85 a
  • Complementary Products: ZC4G002 connection cable, ZDCG004 connection cable, ZDCG005 connection cable
wenglor spot lights are ideally suited for vision applications in which only small areas need to be homogeneously illuminated. They can be operated in continuous mode or synchronized to the camera in strobe mode. Above all in applications where space is limited, users profit from the compact M18 format.
