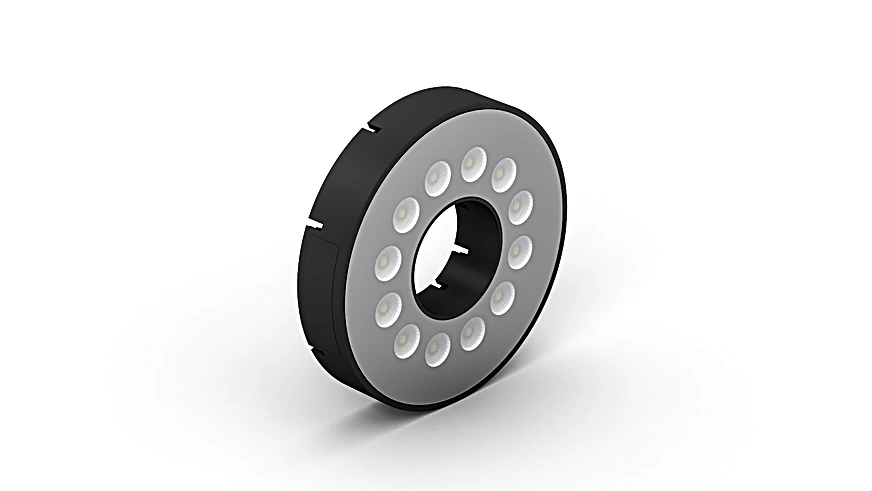

Wenglor ZVZF102 Ring Light infrared, 50 mm

Ring Light infrared, 50 mm.

$1,771.00
Part Number
  • ZVZF102
Highlights...

Features

  • Continuous mode or strobe mode synchronized with the camera
  • Homogeneous and very bright illumination without shadows
  • Can be mounted together with Smart Camera or Machine Vision Camera
  • Light Source: Infrared Light
  • Wavelength: 850 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Opening Angle: 33 °
  • Temperature Range: -22°F to 122°F
  • Storage temperature: -22°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption Continuous Mode (Ub = 24 V): < 780 mA
  • Current consumption flash mode OverDrive (operating voltage = 24 V): < 4,800 mA
  • Flash duration (max.): 17 to 30,000 µs
  • Duty cycle (max.): < 0,2
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Aluminum, anodised
  • Degree of Protection: IP67
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

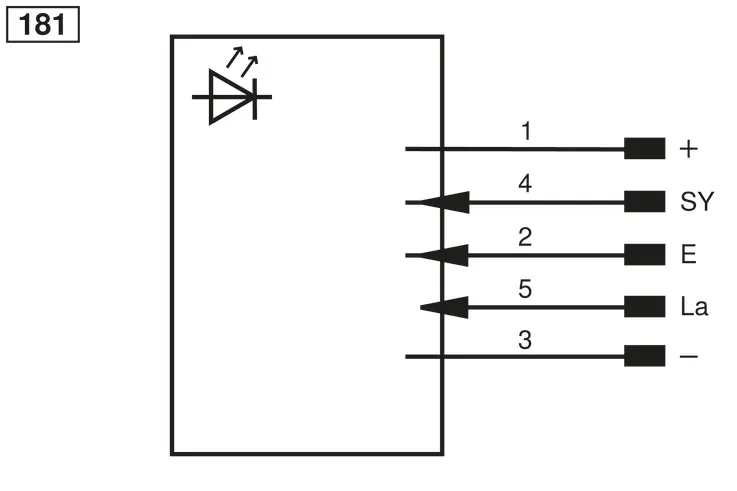

  • Connection: M12 × 1; 5-pin
  • Weight: 489 g
  • MTTFd (EN ISO 13849-1): 1,680.05 a
  • Complementary Products: ZC4G002 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

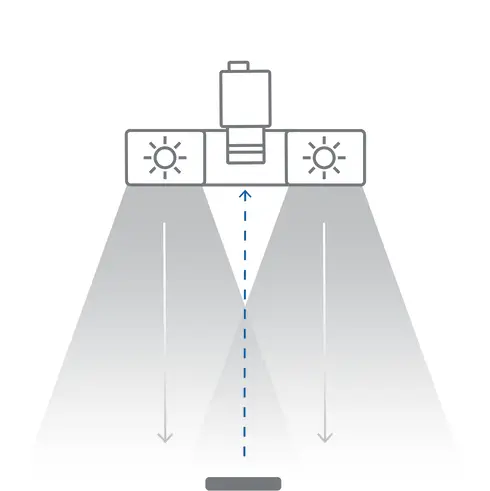

wenglor ring lights are ideally suited for uniform illumination. Thanks to 360° annular floodlighting, shadows can be reduced and image quality can thus be improved. They can be operated in continuous mode, or synchronized to the camera in flash mode. The rugged housing with IP67 protection and standardized mounting together with Smart Cameras or Machine Vision Cameras simplify integration into existing systems and generate lots of space for new system concepts.
