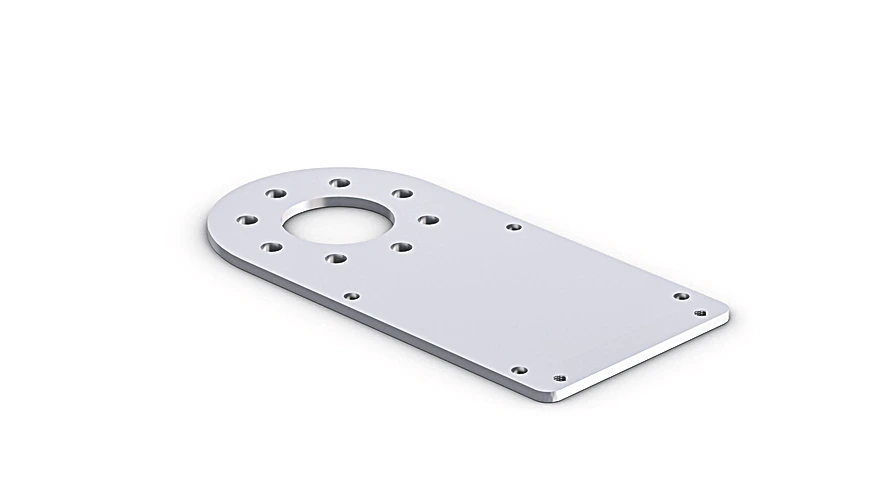

Wenglor ZVZC001 Adapter for robot flange and calibration plate or B60

Adapter for robot flange and calibration plate or B60.

$40.00
Part Number
  • ZVZC001
Highlights...

Features

  • Mounting type, device-side: Screwable to calibration plate/B60
  • Mounting type, system-side: Robot flange
  • Material: Stainless steel, V2A (1.4301/304)
  • Weight: 213 g
  • Scope of delivery: 1 × adapter, 4 × screws M4, 4 × screws M6
  • Packaging unit: 1 Piece
  • Use: As a mounting adapter, For robot flange
  • Complementary Products: ZVZJ calibration plate

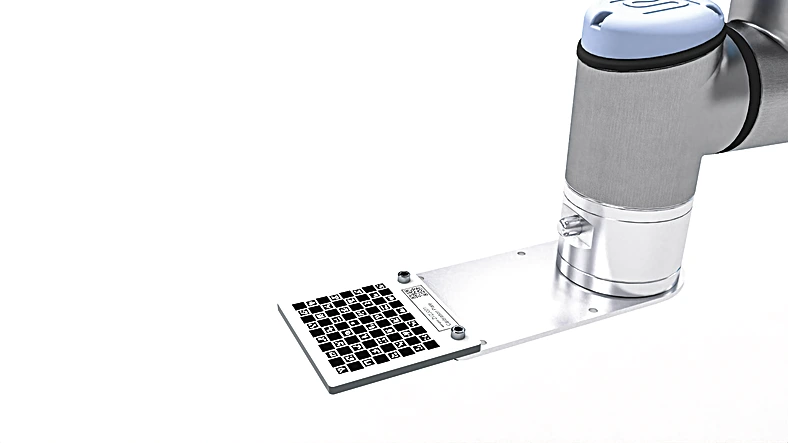

Precise adapter for mounting a calibration plate or smart camera on robot flanges in accordance with ISO 9409-1. Ensures a precise, stable connection and easy integration into existing robot systems.
