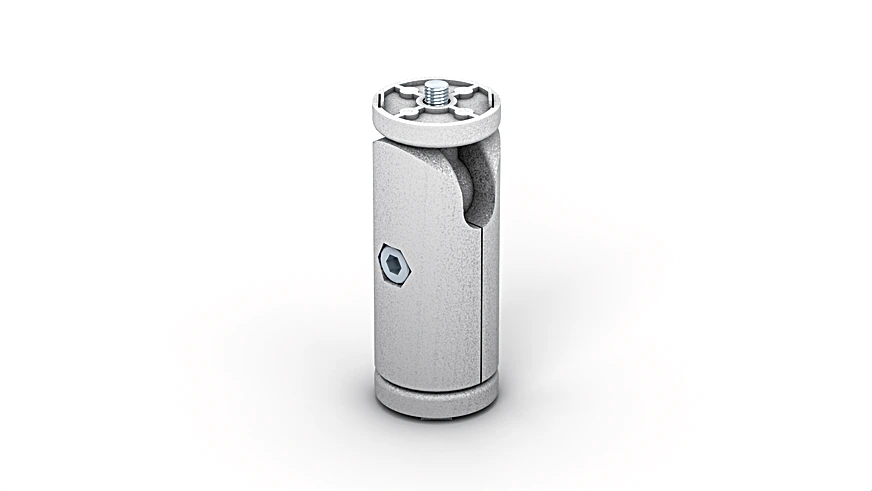

Wenglor ZNNZ003 Mounting universal holder

Mounting universal holder.

$95.90
Part Number
  • ZNNZ003
Highlights...

Features

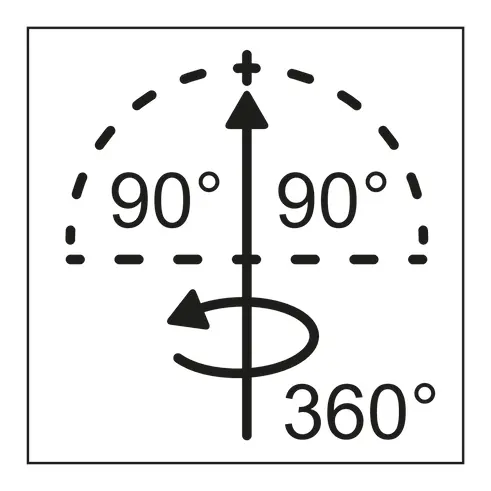

  • Easy alignment
  • Rugged aluminium housing
  • Flexible mounting options

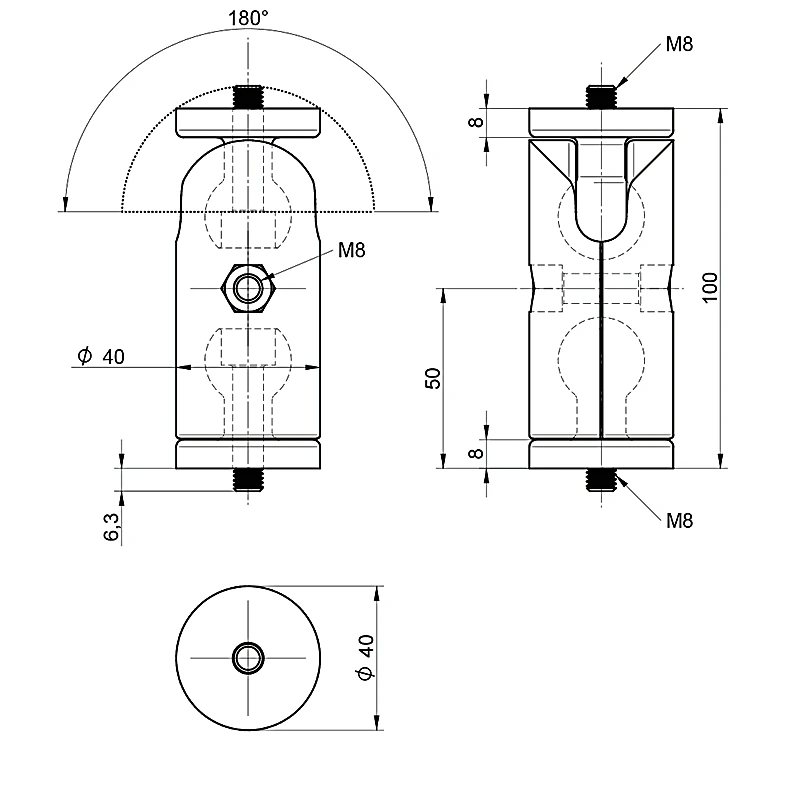

  • Height: 100 mm
  • Diameter: 40 mm
  • Thread: M8
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Aluminum profile
  • Material: Aluminum / Steel, galvanized
  • Weight: 285 g

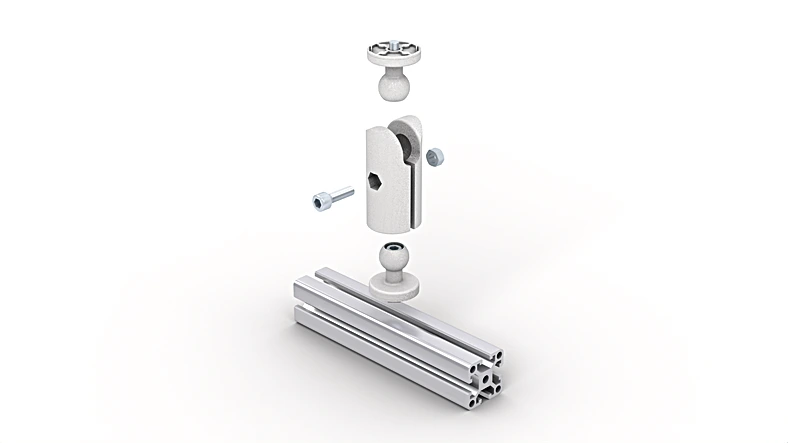

  • Scope of delivery: 1 × M8 screw × 35 mm, 1 × M8 screw × 40 mm, 2 × joint halves with M8 cylinder head screw × 30 mm, 2 × ball joints
  • Packaging unit: 1 Piece
  • Use: for square housing, As a universal holder
  • Complementary Products: ZNNC001 Adapter, ZNNC002 Adapter
The robust mounting system can be mounted on aluminum profiles. The additional adapter enables the mounting and flexible alignment of various image processing products and 1D/2D code scanners.
