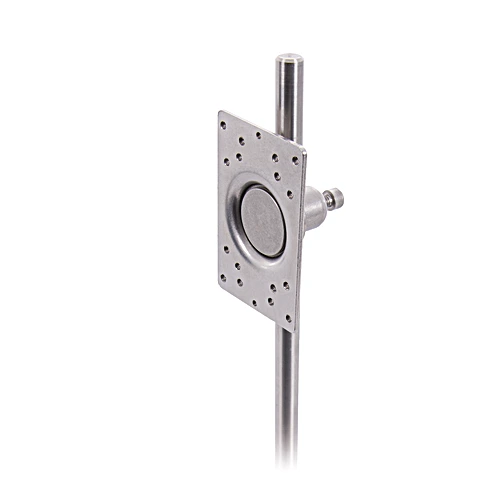

Wenglor ZNNZ002 Mounting for 1P, 1N, 1T and 1M Housings and Reflectors

Features

• Rugged stainless steel design
• Quick sensor installation thanks to threaded holes
• Universal mounting plate suitable for sensors with 1P, 1N, TA and M housings, as well as reflectors

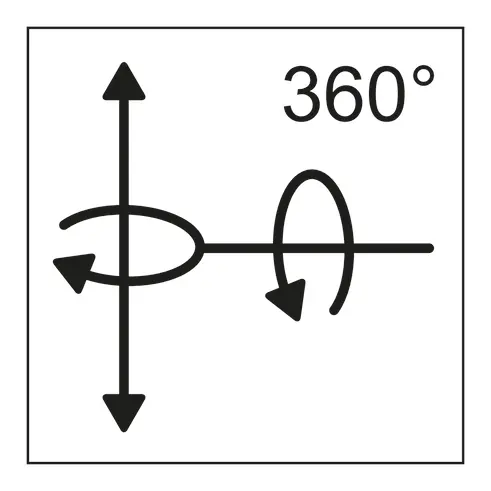

• Highly flexible with 360° horizontal and vertical setting angle range
• Mounting type, device-side: Screwable to mounting plate
• Mounting type, system-side: Mounting bar
• Material Mounting Head: Stainless steel, V2A (1.4305/303)
• Material Mounting Plate: Stainless steel, V2A (1.4301/304)

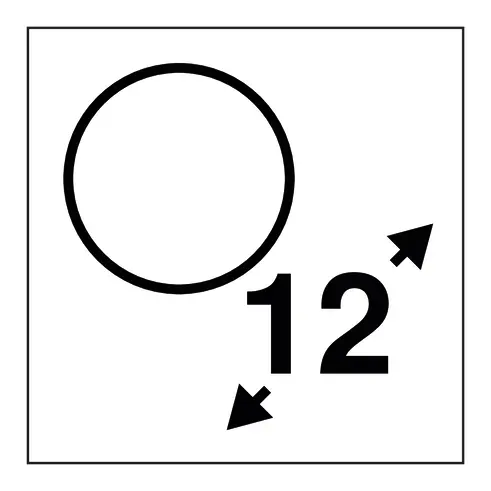

• for Round Profile Diameter: 8 to 13 mm
• Weight: 178 g
• Scope of delivery: 1 × mounting head, 1 × mounting plate, 1 × M6 screw × 20 mm
• Packaging unit: 1 Piece
• Use: for square housing
• Complementary Products: Mounting Set Z1ME001 (for M Housing), Mounting Set BEF-SET-14 (for 1N and P Housings), Mounting Set Z1PE004 (for 1P Housing), Mounting Set BEF-SET-38 (for TA Housing)
