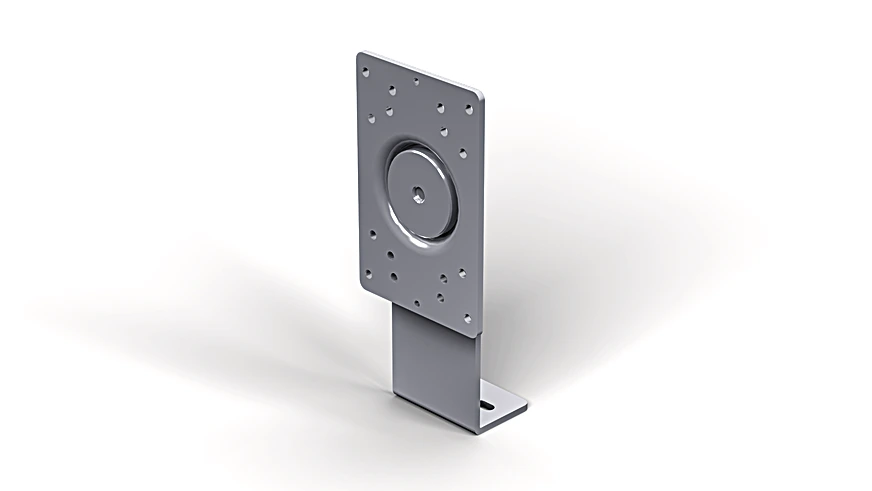

Wenglor ZNNX004 Mounting Bracket for 1P, 1N, 1T and 1M Housings and Reflectors

Mounting Bracket for 1P, 1N, 1T and 1M Housings and Reflectors.

$41.60
Part Number
  • ZNNX004
Highlights...

Features

  • Rugged stainless steel design
  • Quick sensor installation thanks to threaded holes
  • Universal mounting plate suitable for sensors with 1P, 1N, TA and M housings, as well as reflectors
  • Highly flexible thanks to 360° setting angle range
  • Material: Stainless steel, V2A (1.4305/303)
  • Weight: 226 g
  • Scope of delivery: 1 × mounting bracket
  • Packaging unit: 1 Piece
  • Use: for square housing
  • Complementary Products: Mounting Set Z1ME001 (for M Housing), Mounting Set BEF-SET-14 (for 1N and P Housings), Mounting Set Z1PE004 (for 1P Housing), Mounting Set BEF-SET-38 (for TA Housing)

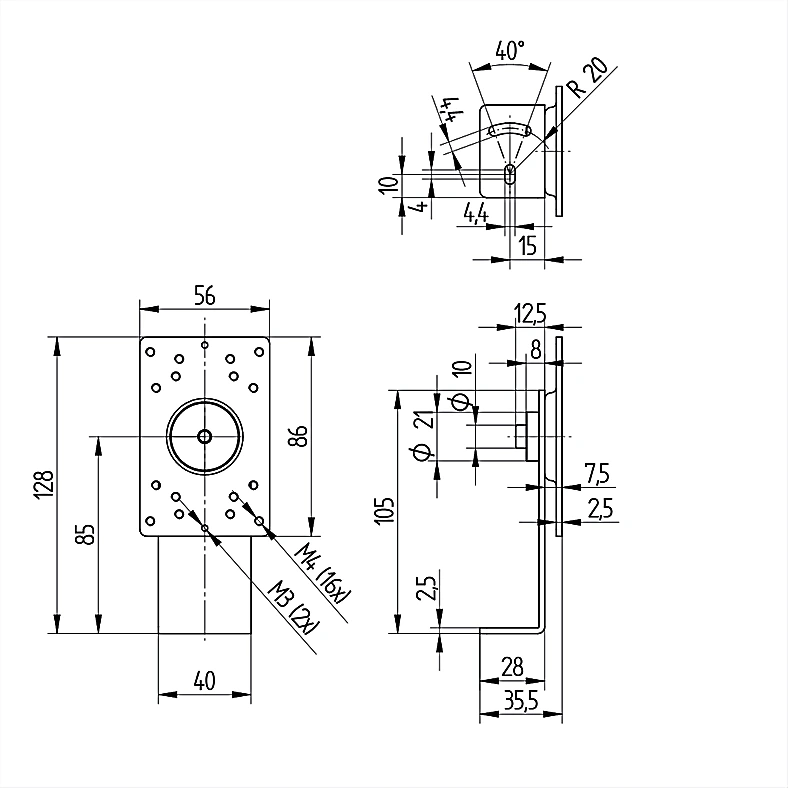

The rugged, stainless steel mounting bracket offers all-around full flexibility for installation. Sensors with1P, 1N, TA and M housings, as well as RE6151Bx, Z90R005, ZRME03B01 and RE9538BA reflectors, can be rotated and set in the horizontal plane anywhere within a 360° range. Included threaded holes simplify installation and make it quicker. 1P = 50 × 50 × 20 × 30 mm 1N = 76 × 32.5 ×18 mm TA = 81 × 55 × 30 mm M = 49.1 × 57.8 × 27 × 16 mm
