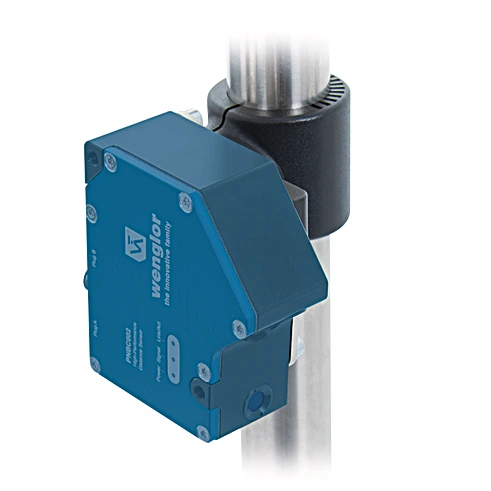

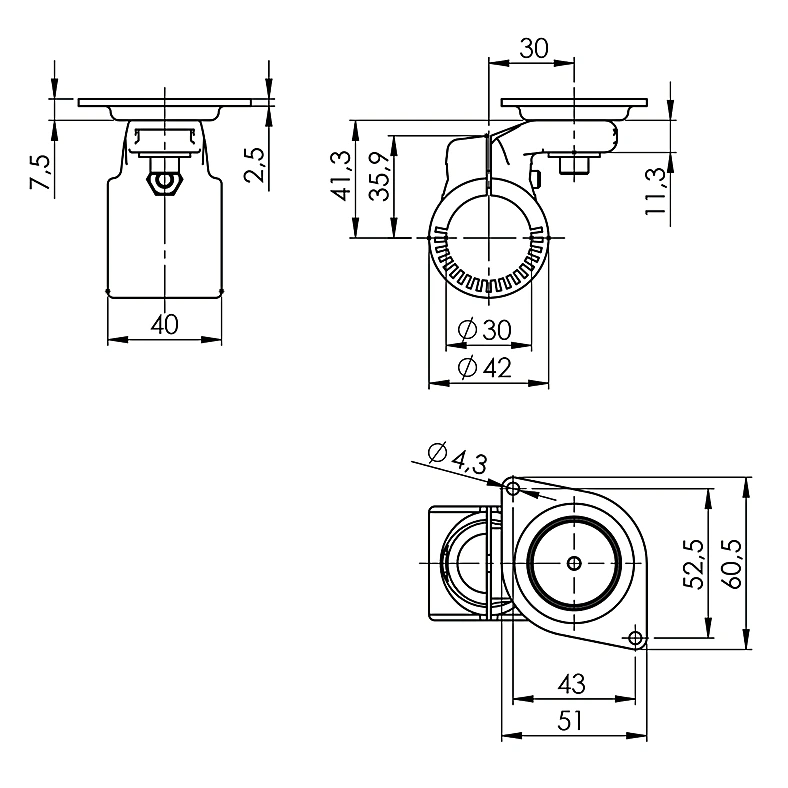

Wenglor ZNBZ002 Mounting for Hole Pattern 43 × 52,5 mm (NB) and FIS-6801

Mounting for Hole Pattern 43 × 52,5 mm (NB) and FIS-6801.

$38.30
Part Number
  • ZNBZ002
Highlights...

Features

  • Simple installation
  • Flexible alignment options
  • Plastic
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material Mounting Head: Plastic, PA
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)
  • for Round Profile Diameter: 30 mm
  • Weight: 131 g
  • Packaging unit: 1 Piece
  • Use: for square housing

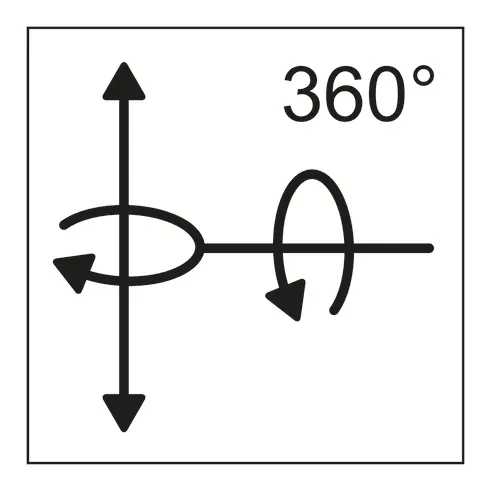

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
