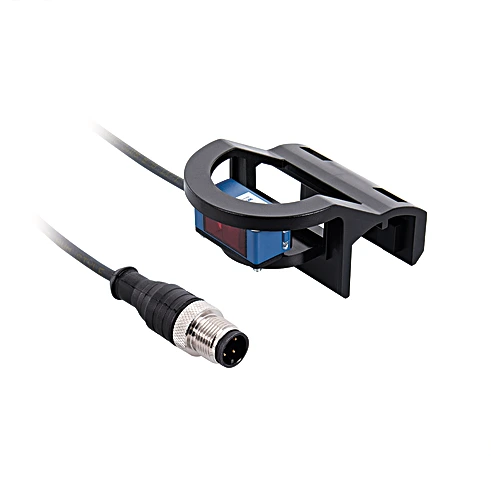

Wenglor ZMZG001 Muting Sensor System P1KL020, for Muting Arm

Muting Sensor System P1KL020, for Muting Arm.

$358.00
Part Number
  • ZMZG001
Highlights...

Features

  • Also suitable for glossy and reflective objects
  • High switching frequency
  • Pre-assembled for quick installation
  • Reference Reflector/Reflector Foil: RE6040BA
  • Light Source: Red Light
  • Max. Ambient Light: 10,000 Lux
  • Range: 3,500 mm
  • Switching Hysteresis: < 10 %
  • Switching Frequency: 2,000 Hz
  • Current Consumption (Ub = 24 V): < 20 mA
  • Supply Voltage: 10 to 30 V DC
  • Switching Output/Switching Current: 100 mA
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Temperature Range: -40°F to 140°F
  • Material: Plastic
  • Degree of Protection: IP67, IP68

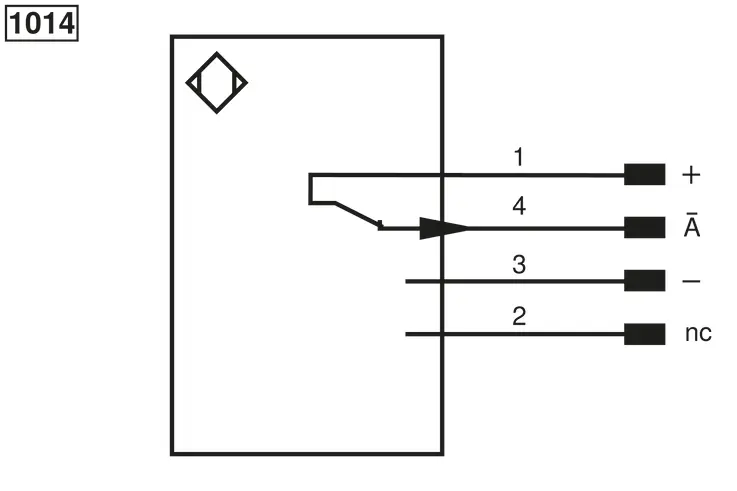

  • Connection: M12 × 1; 4-pin

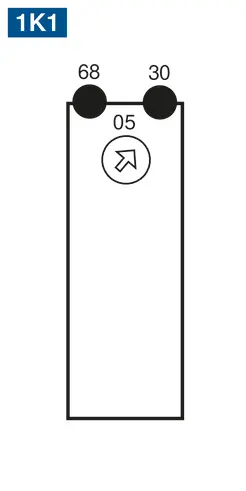

  • Setting Method: Potentiometer
  • Cable length (L): 1 m
  • PNP NC: yes
  • Weight: 63 g
  • Scope of delivery: 1 × mounting, 1 × cable clip, 1 × sensor
  • Packaging unit: 1 Piece
  • Default settings: Pre-assembled
The retro-reflex sensor works with red light and reliably detects objects, even with reflective or glossy surfaces at high speeds. The muting sensor system is pre-assembled in order to permit quick mounting to the muting boom.
