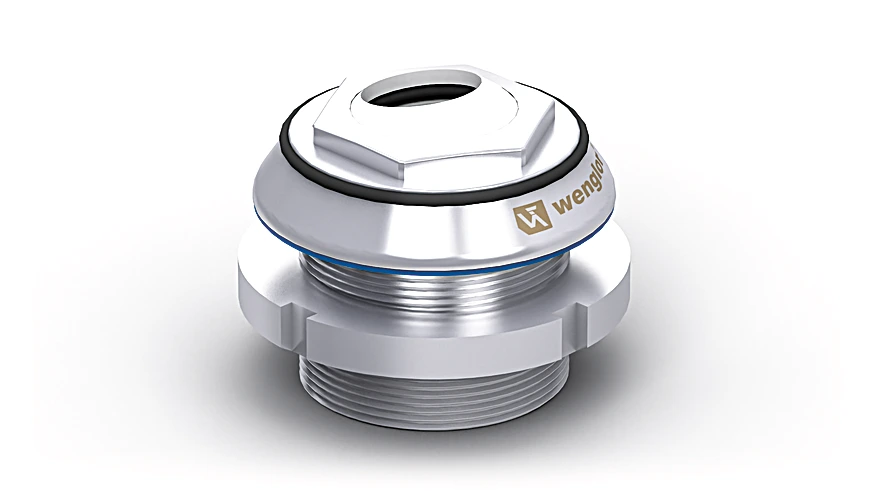

Wenglor ZMKII0002 Mounting Console for Ø 20 mm

Mounting Console for Ø 20 mm.

$170.00
Part Number
  • ZMKII0002
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Resistant to cleaning agents
  • Made with food safe materials that are FDA approved
  • For angle compensation
  • Mounting type, device-side: can be screwed
  • Material: Stainless steel, V4A (1.4404/316L) / Rubber, FPM / PTFE (FDA) / Silicone (FDA)
  • Angle compensation: 10 °
  • Degree of Protection: IP68 / IP69K
  • Weight: 597 g
  • Scope of delivery: 1 × mounting console
  • Packaging unit: 1 Piece
  • Use: For mounting tube, for round housing
  • Hygienic Design: X
  • Detergent resistant: X

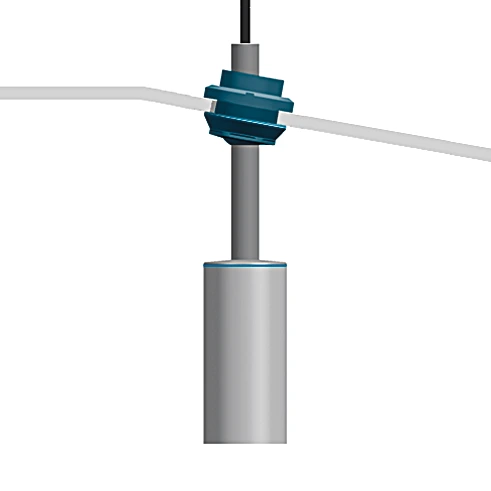

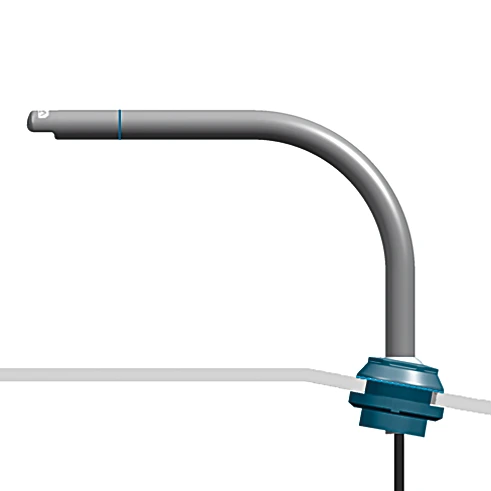

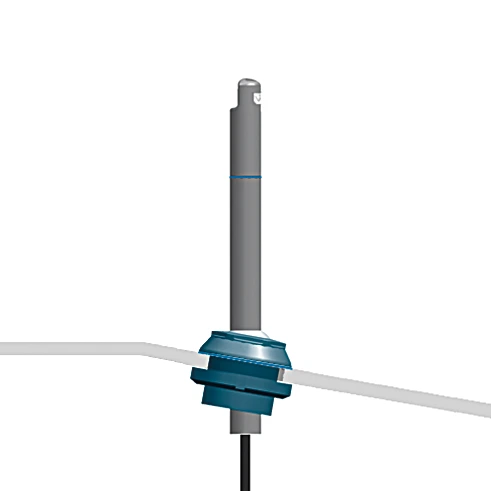

This complete system, which integrates seamlessly into the machine, includes numerous other components as well as the mounting console. The hygiene sensors and mounting tubes can be fed through the system's side panel with the aid of the mounting console and fastened there without any gaps. The sensors can be mounted even on inclined surfaces and can be quickly and easily adjusted thanks to angle compensation of up to 10°.
