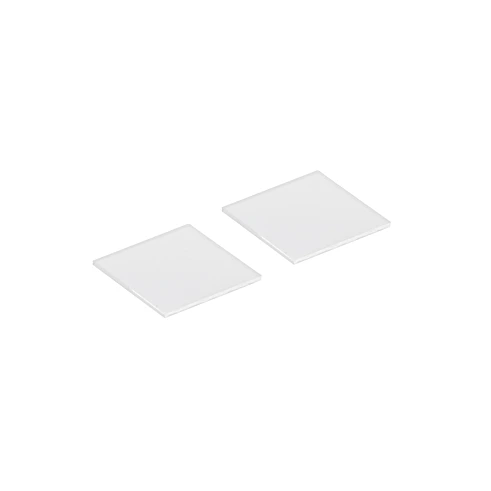

Wenglor ZLWE005 5 Pairs of Screening Grids for ZLWS003

5 Pairs of Screening Grids for ZLWS003.

$337.00
Part Number
  • ZLWE005
Highlights...

Features

  • Hardened surface
  • Suitable for the respective protective disc retainer
  • Suitable for sensors with red or blue light
  • Antireflection coated in broad ranges with wavelengths from 400 to 700 nm
  • Material: Glass
  • Coated Optics: yes
  • Weight: 156 g
  • Packaging unit: 5 pairs
The use of protective discs results in an offset in the Z direction of the sensor's measuring range. The amount of offset depends on the sensor model. Furthermore, linearity error is influenced by up to 0.1%.
